USB Visual Signal Indicator

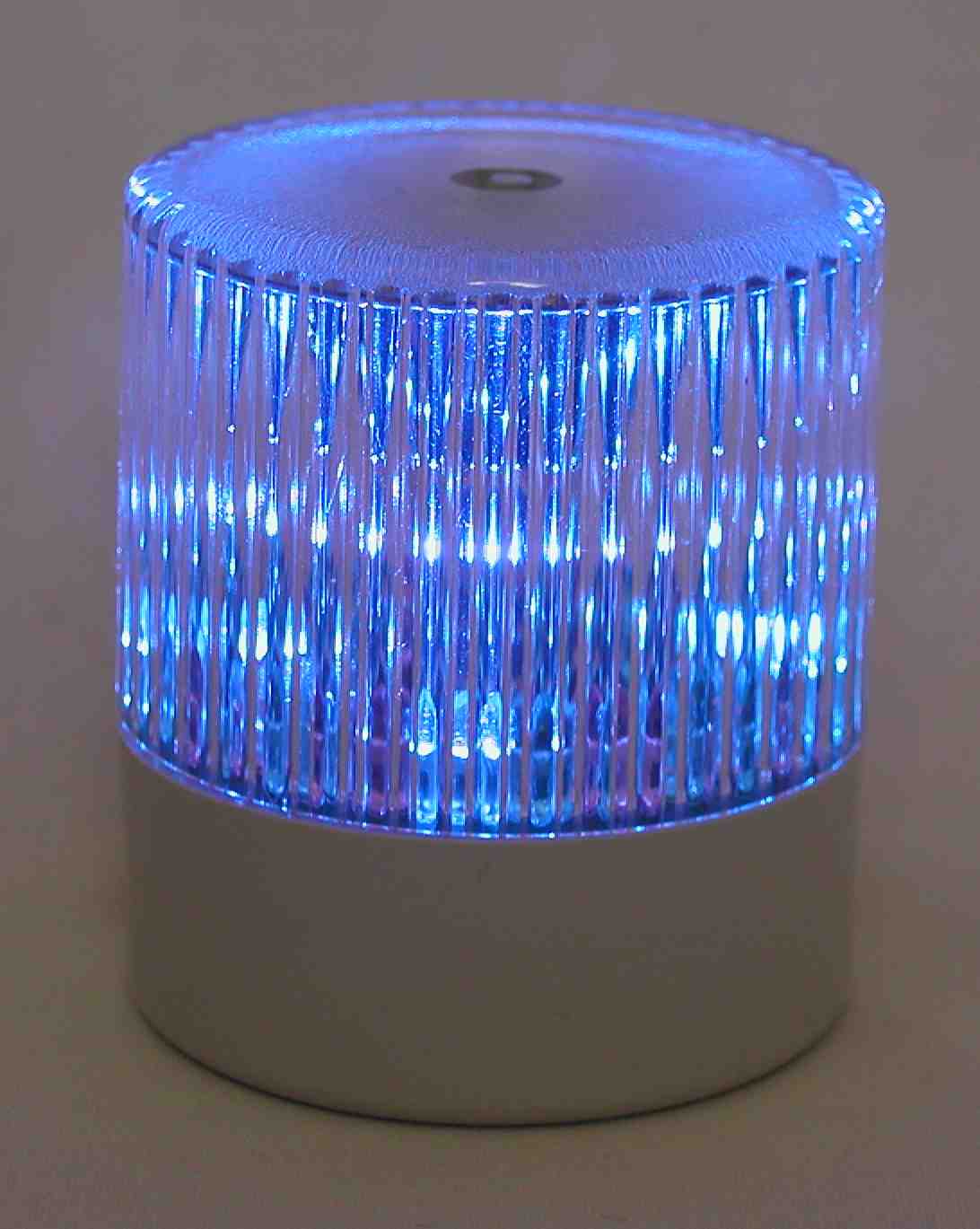

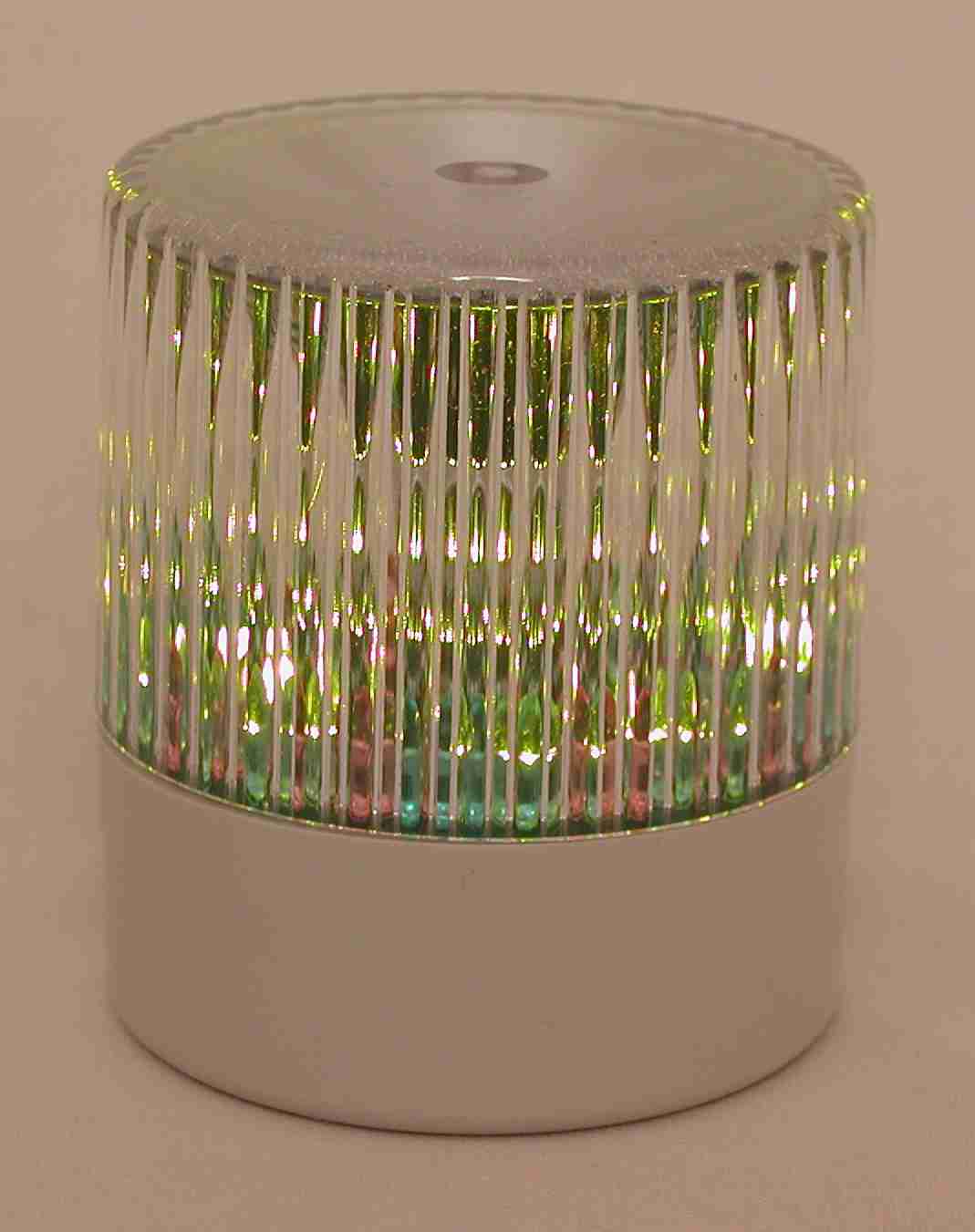

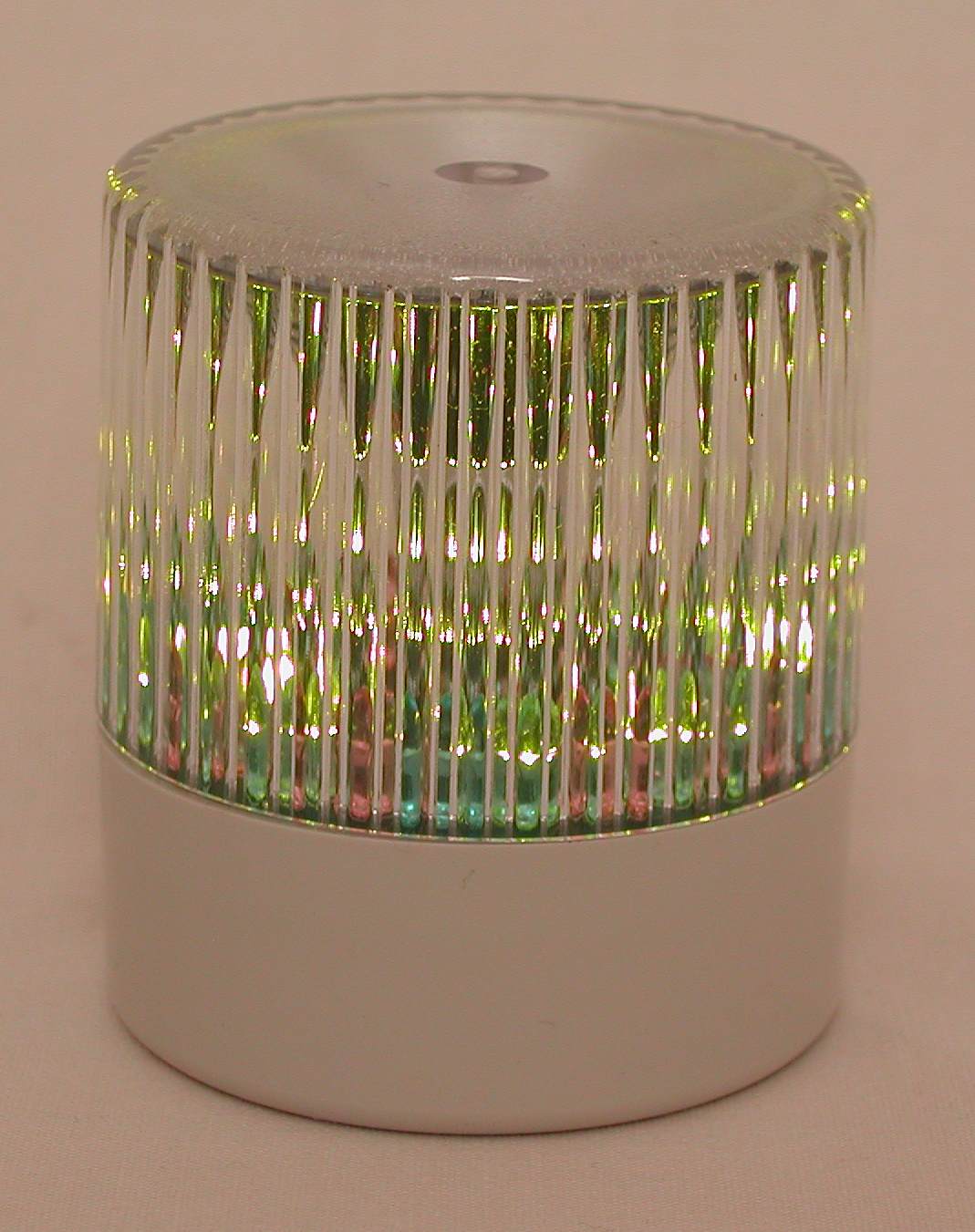

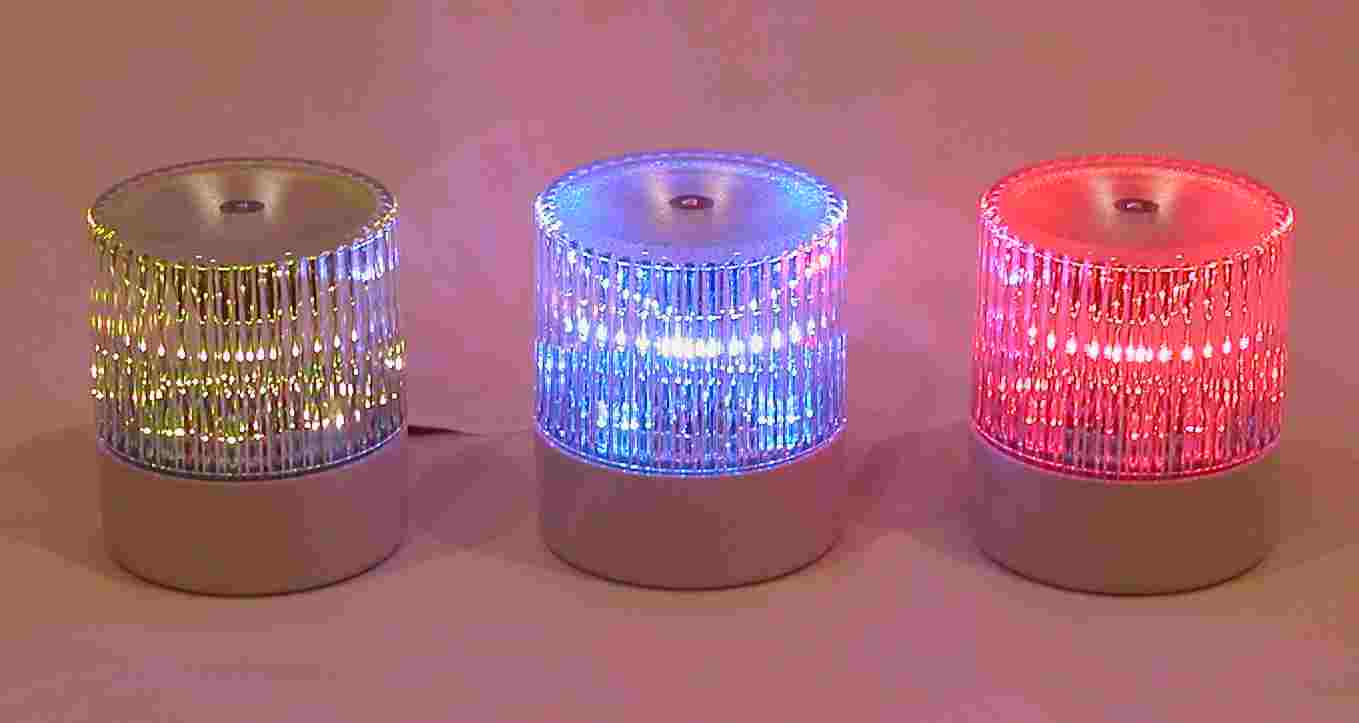

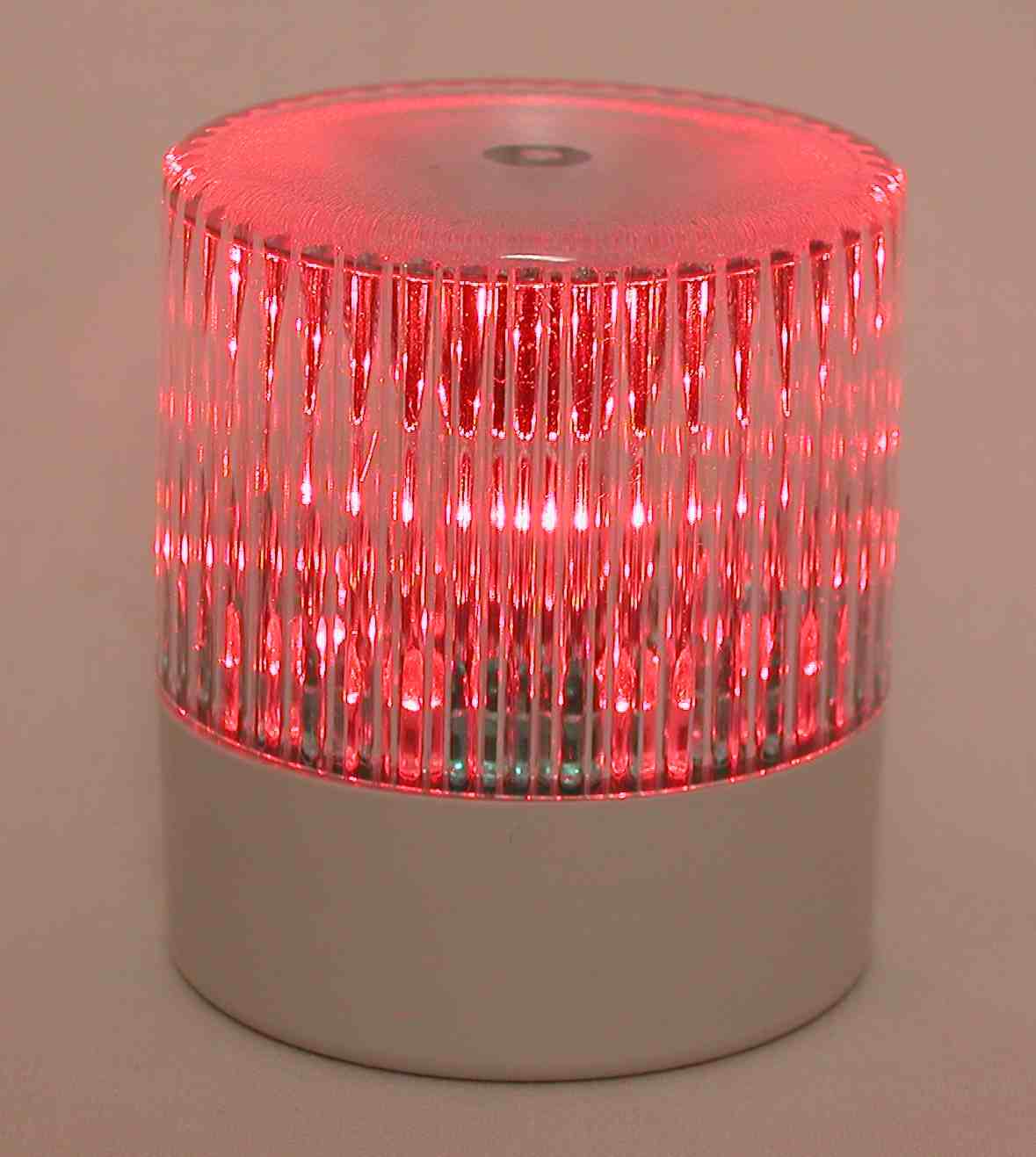

The USBLMP is a visual signal indicator powered and activated via the USB port. Targeted for process equipment and computer status indicator applications. LEDs produce light in three of four colors; red, green and either yellow or blue. Intensity, flash rate and duty cycle are all programmable. Optionally internal piezo buzzer and tactile switch. Self powered from the USB port. 100,000+ hour LEDs. Dimensions are 50mm by 58mm, the base has an treaded insert for pole mounting. There are three wire exit styles they are: side, bottom and bottom centered. Includes 2 or 5 Meter USB Cable. Unique serial number in each device. Support on all major OS systems. Example software available in C, VB, C# and VB.Net.

Generation II - These devices uses the pre-installed USB HID driver. Supported on 32 and 64 bit OS systems. No driver required, driver already installed on all major OS systems. More info..

Generation I - These device uses the Delcom driver. Requires user to preinstall the delcom driver. Delcom driver available for Windows™ 32Bit OS. Third party driver support available for Linux and MAC OS. More info..

  Generation I products are NOT recommended for new designs.

Image Description LEDColors
Base&WireColor
GenII
PartNum
Supports Microsoft Windows. Support MAX OSX. Supports Linux. Supports 32 & 64 Bit OS.
GenI
PartNum
Supports Microsoft Windows. Limited support MAX OSX. Limited supports Linux.
USB
Wire
Length
Switch Buzzer Price@1
Side cable configurations - Ideal for desktop or pole mount. Click on part number for more details
USB HID Visual Signal Indicator RGB GreenRedBlue
Beige
904000
904000-S
904000-B
904000-SB
804000
804000-S
804000-B
804000-SB
2M







$93.45
$95.55
$95.55
$97.65
USB HID Visual Signal Indicator RGB w/5M cable GreenRedBlue
Beige
904001
804001
5M

$95.55
USB HID Visual Signal Indicator RGY GreenRedYellow
Beige
904002
904002-S
904002-B
904002-SB
804002
804002-S
804002-B
804002-SB
2M







$86.10
$88.20
$88.20
$90.30
USB HID Visual Signal Indicator RGY w/5M Cable GreenRedYellow
Beige
904003
804003
5M

$88.20
USB HID Visual Signal Indicator RGB Black Case GreenRedBlue
Black
904005
904005-S
904005-B
904005-SB
804005
804005-S
804005-B
804005-SB
2M







$93.45
$95.55
$95.55
$97.65
USB HID Visual Signal Indicator RGB Black Case w/5M cable GreenRedBlue
Black
904006
804006
5M

$95.55
USB HID Visual Signal Indicator RGY Black Case GreenRedYellow
Black
904007
904007-S
904007-B
904007-SB
804007
804007-S
804007-B
804007-SB
2M







$86.10
$88.20
$88.20
$90.30
USB HID Visual Signal Indicator RGY Black Case w/5M Cable GreenRedYellow
Black
904008
804008
5M

$88.20
Center cable configuration - Ideal for pole mount with hidden/protected cable.
USB HID Visual Signal Indicator RGB Center Cable GreenRedBlue
Beige
904010
804010
2M

$98.70
USB HID Visual Signal Indicator RGB w/5M Center Cable GreenRedBlue
Beige
904011
804011
5M

$100.80
USB HID Visual Signal Indicator RGY Center Cable GreenRedYellow
Beige
904012
804012
2M

$91.35
USB HID Visual Signal Indicator RGY w/5M Center Cable GreenRedYellow
Beige
904013
804013
5M

$93.45
USB HID Visual Signal Indicator RGB Black Case w/Center Cable GreenRedBlue
Black
904015
804015
2M

$98.70
USB HID Visual Signal Indicator RGB Black Case w/Center 5M Cable GreenRedBlue
Black
904016
804016
5M

$100.80
USB HID Visual Signal Indicator RGY Black Case w/ Center Cable GreenRedYellow
Black
904017
804017
2M

$91.35
USB HID Visual Signal Indicator RGY Black Case w/ Center 5M Cable GreenRedYellow
Black
904018
804018
5M

$93.45
Bottom cable configuration - Ideal for pole mount. Click on part number for more details
USB HID Visual Signal Indicator RGB w/Bottom Cable GreenRedBlue
Beige
904020
804020
2M

$93.45
USB HID Visual Signal Indicator RGB w/Bottom 5MCable GreenRedBlue
Beige
904021
804021
5M

$95.55
USB HID Visual Signal Indicator RGY w/Bottom Cable GreenRedYellow
Beige
904022
804022
2M

$86.10
USB HID Visual Signal Indicator RGY w/Bottom 5M Cable GreenRedYellow
Beige
904023
804023
5M

$88.20
USB HID Visual Signal Indicator RGB Black Case w/Bottom Cable GreenRedBlue
Black
904025
804025
2M

$93.45
USB HID Visual Signal Indicator RGB Black Case w/Bottom 5MCable GreenRedBlue
Black
904026
804026
5M

$95.55
USB HID Visual Signal Indicator RGY Black Case w/Bottom Cable GreenRedYellow
Black
904027
804027
2M

$86.10
USB HID Visual Signal Indicator RGY Black Case w/Bottom 5M Cable GreenRedYellow
Black
904028
804028
5M

$88.20
Click here for Mounting pole options

Supports Microsoft Windows. Supports microsoft windows.
Support MAX OSX. Supports MAC OSX.
Limited support MAX OSX. Driver available for MAC OSX, but some custom programming may be required.
Supports Linux. Supports Linux.
Limited supports Linux. Driver available for Linux, but some custom programming may be required.
Supports 32 & 64 Bit OS. Supports both 32 and 64 bit operating systems.
  Generation I product - Not recomended for new designs. Click for more info

How to select your USB visual signal indicator.

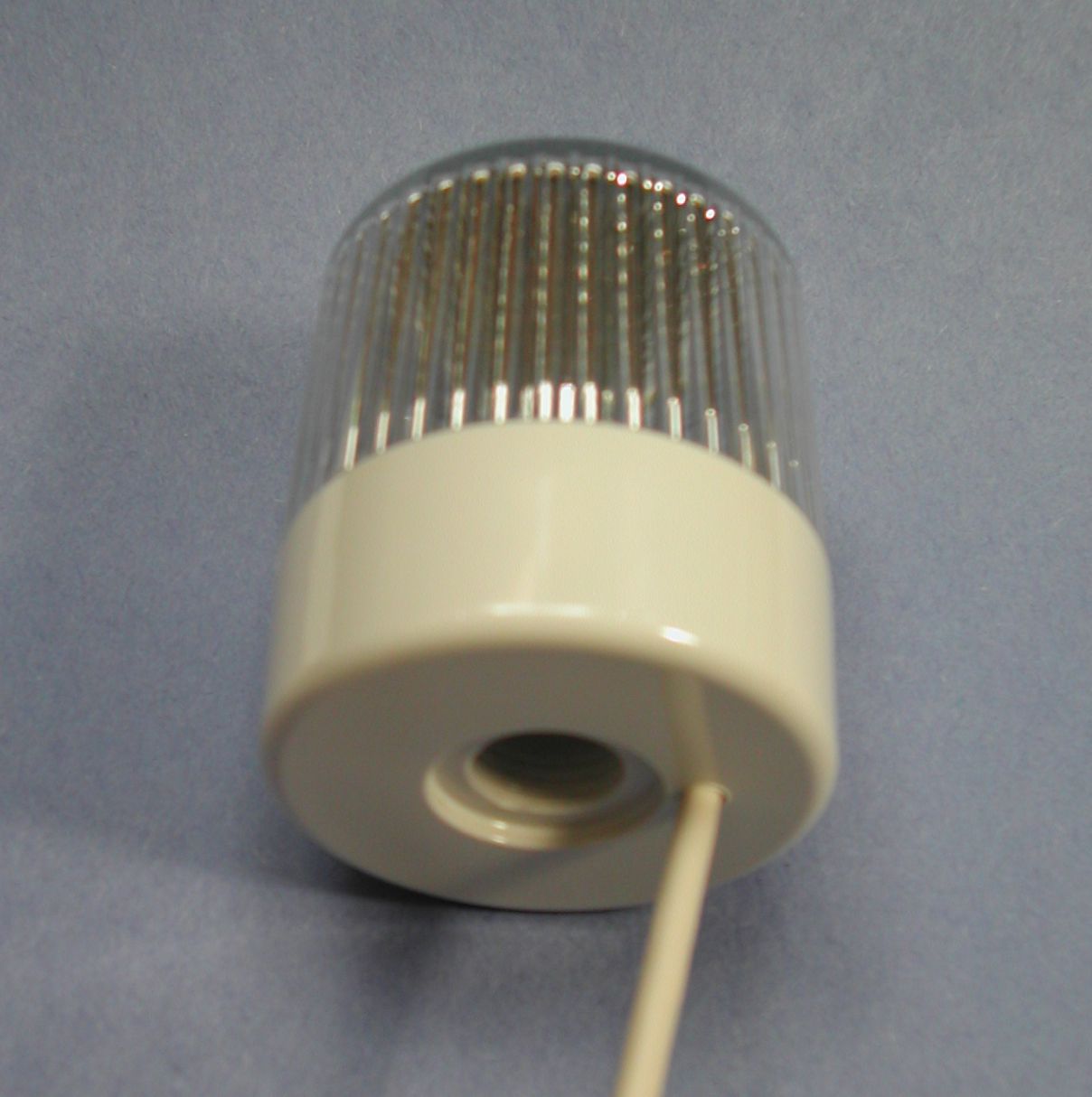

1) First choose the wire entry style. There are three styles, they are; side, bottom and center bottom. The side entry is best suited for mounting the device on a horizontal surface. The bottom entry is a best for pole mount or horizontal surface where a hole is available for the wire to feed thru the surface. The center bottom entry is best for pole mounting where the USB cable is also passed thru the mounting pole. This option includes a special connector that allows the USB cable to pass thru the mounting pole.
2) Choose the enclosure color, beige or black.
3) Choose the LED color combinations; Green/Red/Blue or Green/Red/Yellow.
4) Choose the USB cable length; either 2 or 5 meter.
5) Determine the internal switch option. The internal switch is actuated by pressed down on the lens cover. The switch can be read via software to produce an event.
6) Determine the internal buzzer option. The buzzer is actuated via software control. The buzzer is not recommended for noisy environments.
7) Lastly choose the generation II firmware type. Generation I devices are NOT recommended for new designs.
Applications: Process Equipment, Status Indicators, Web & Email Status, Queue Controls, Telecomunications, POS CheckOuts, Flow Controls, Mission Critical
