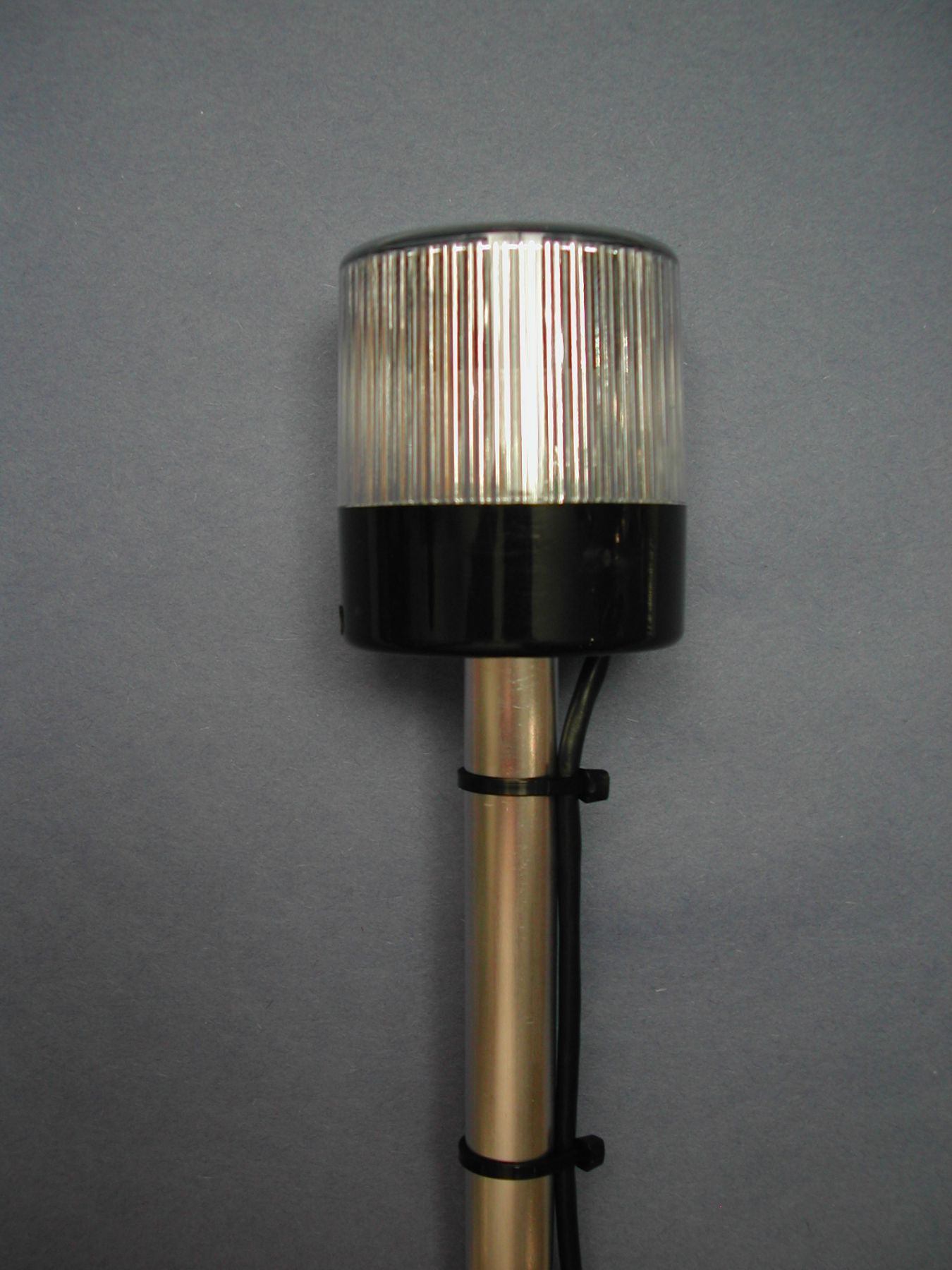

USB HID Visual Signal Indicator RGY Black Case w/Switch & Bottom Cable
The visual signal indicators are powered and controlled via the USB port.
LEDs produce light in three colors; red, green and yellow. Intensity, flash rate and duty cycle are programmable. Self powered from the USB port. Dimensions are 50mm by 58mm, the base has an treaded insert (M14,NPT1/4") for pole mounting. Includes 2 Meter Black USB Cable. Unique serial number in each device.
Cable: 2 Meter Beige USB Cable.
Cable Configuration: Bottom. Ideal for pole mount configurations.
Applications: Process Equipment, Email Indicator, WebSite Status, Mission Critical Indicators, Assembly Line Status, POS CheckOuts, Queue Controls, Indicator Lamps.
DECLARATION OF CONFORMITY
|USB HID G2 Datasheet ||USB HID G2 Datasheet. Datasheet for all the Delcom USB HID products.|
|USB HID G2 Visual Indicator Datasheet. ||USB HID G2 Visual Indicator Datasheet/manual.
|804100 ||Mounting Poles and Bases|| |
|Delcom DLL ||Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
|900000 ||Delcom GEN2 USB HID Examples and Documentation|
|Delcom Distribution CD Disk ||Delcom Distribution CD Disk - Contains all the Drivers, Applications, Examples, Documentation and sample code. |
