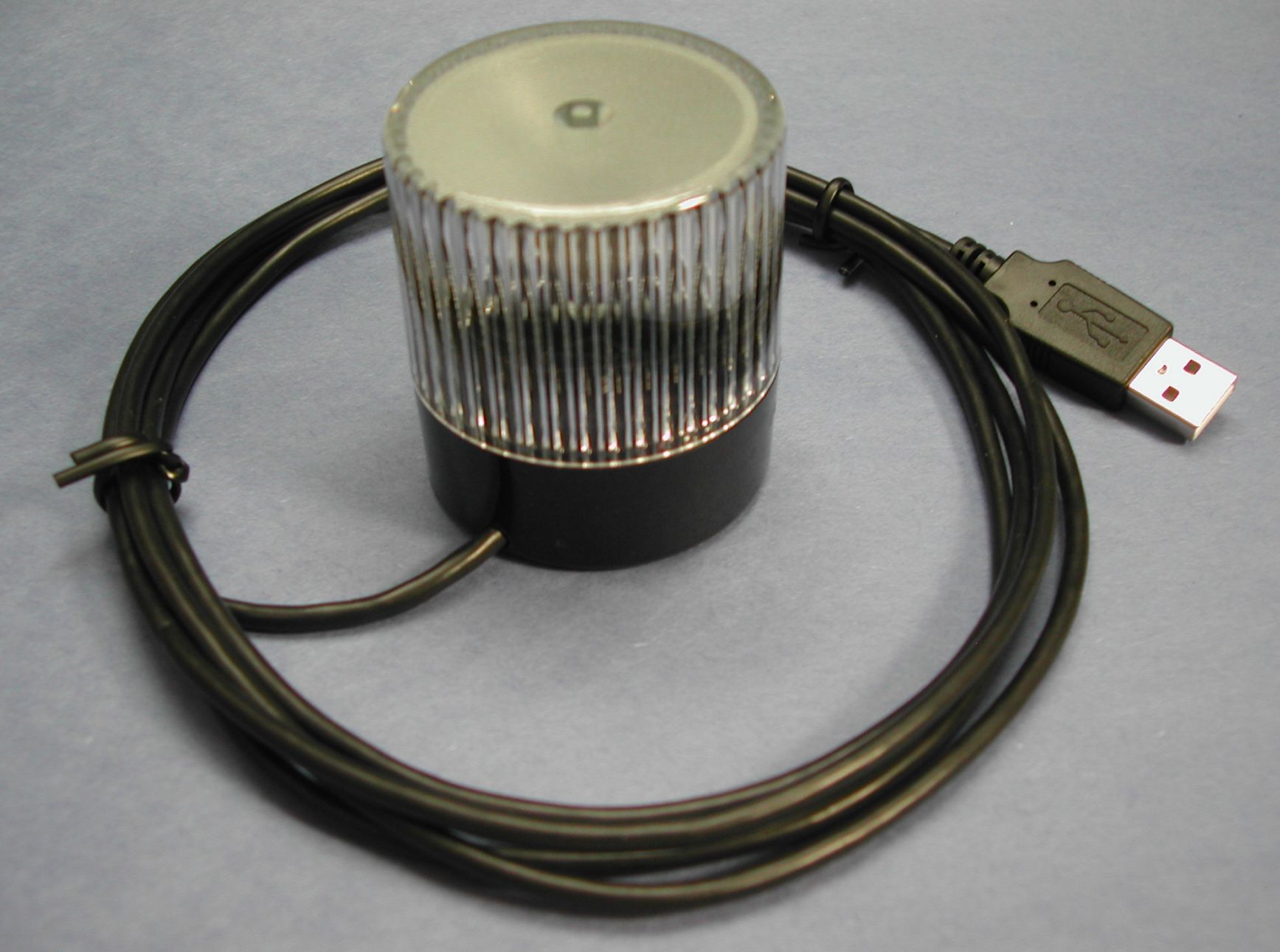

USB HID Visual Signal Indicator RGB Black Case w/Side Cable.
The visual signal indicators are powered and controlled via the USB port.
LEDs produce light in three colors; red, green and blue. Intensity, flash rate and duty cycle are programmable. Internal piezo buzzer. Self powered from the USB port. Dimensions are 50mm by 58mm, the base has an treaded insert (M14,NPT1/4") for pole mounting. Includes 2 Meter USB Cable. Unique serial number in each device.
Cable: 2 Meter Black USB Cable.
Cable Configuration: Side. Can be used for desktop or pole mount.
Applications: Process Equipment, Email Indicator, WebSite Status, Mission Critical Indicators, Assembly Line Status, POS CheckOuts, Queue Controls, Indicator Lamps.
DECLARATION OF CONFORMITY
|USB HID G2 Datasheet ||USB HID G2 Datasheet. Datasheet for all the Delcom USB HID products.|
|USB HID G2 Visual Indicator Datasheet. ||USB HID G2 Visual Indicator Datasheet/manual.
|804100 ||Mounting Poles and Bases|| |
|Delcom DLL ||Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
|900000 ||Delcom GEN2 USB HID Examples and Documentation|
|Delcom Distribution CD Disk ||Delcom Distribution CD Disk - Contains all the Drivers, Applications, Examples, Documentation and sample code. |
