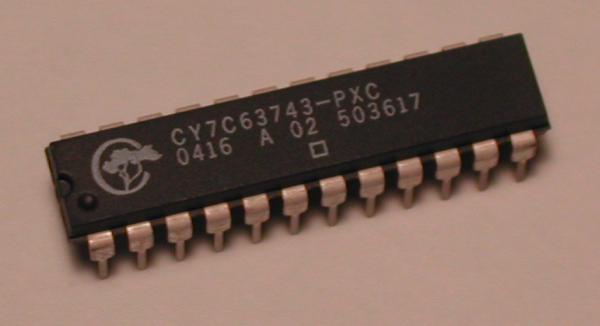

Description: Preprogrammed USB HID Chip 16 GPIO
Based on the Cypress CY7C637xx USB chips.
Package: 24 Lead DIP24(300-Mil)
16 programmable Input/Output pins.
Minimum external required parts; 1 USB Chip,1 Resistor and 2 Caps.
Features; 16 GPIO, I2C Port, Event counter, SPI Port, 1 and 8 byte buffered data mode with handshaking, 64 Bit I/O Command, Clock generator with variable duty cycle, Variable current sink control. Self powered from the USB Cable. Up to 450mA available to the user. Unique serial number in each chip. Uses the built in HID driver.
Supports Win98, ME, Win2000, XP & Mac OS X.
Add USB to your existing or future products without the hassle of learning USB and driver development.
Note(2) This product is based on a Cypress Microprocessor that has been discontinued. This product is no longer available. See current USB Chip Sets.
|
CY7C637xx DataSheet | Cypress CY7C637xx USB Low Speed Chip.
Relates to Delcom 802x70 & 902x70 products. | SOIC 24 Package | SOIC 24 300 mil Package Diagram | |
