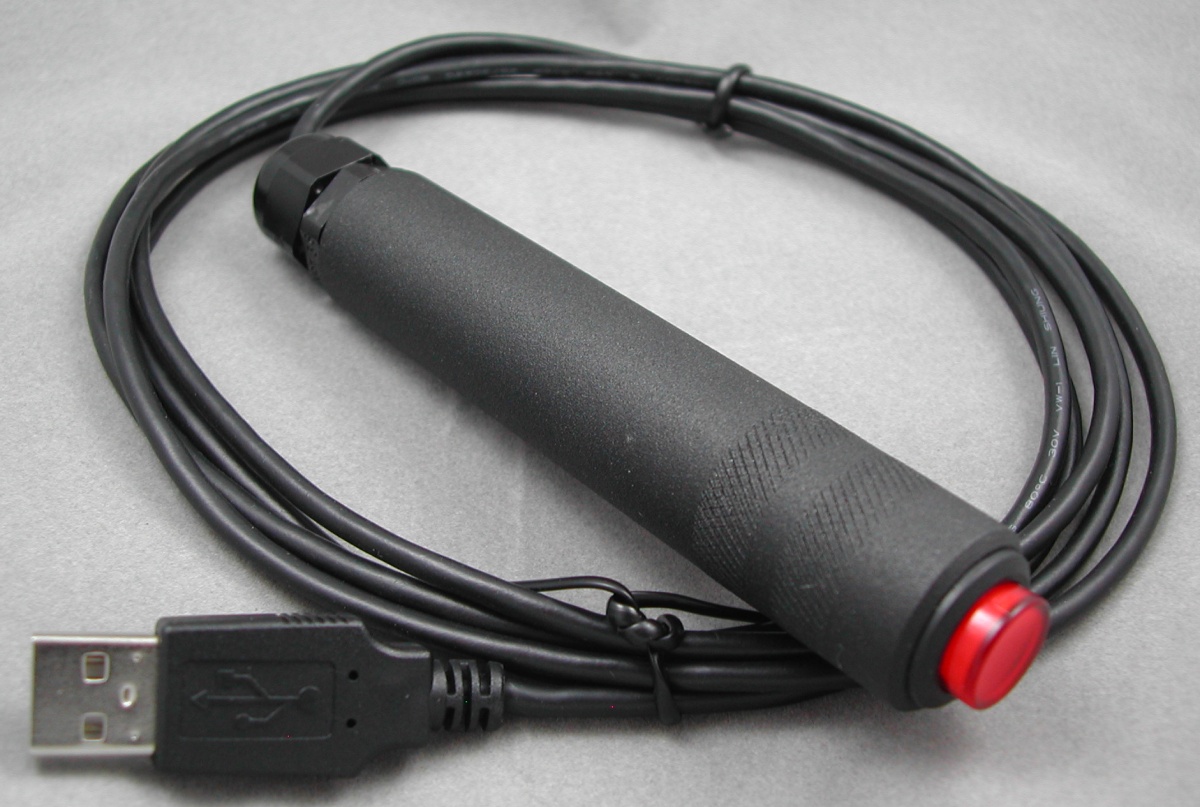

Description: USB HID Hand Held Programable Single Button Switch with 1M Cable.
This device can be programmed to emulate keycodes, mouse buttons and joystick buttons .
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands
(Button connected to pin P0.0 and LED on P1.4).
Supports all Major operating systems (32 and 64 bit).
Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load.
Unique serial number in each device, for use with multiply devices.
Self Powered from the USB port.
Dimensions are 4" long by 0.85" in diameter. Aluminum Enclosure.
Momentary push button is illuminated when device is connected to a USB host.
Includes 1 Meter USB Cable.
Available with RED, GREEN, YELLOW or BLUE lighted button. Default color is RED.
For other colors, note the color on check out page 4 in the USER NOTES box Applications: Process Equipment, Automated Processes, Medical Equipment, Gaming, Special needs
DECLARATION OF CONFORMITY
|
890672 | Delcom Setup Utility | Delcom DLL | Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
| |
900000 | Delcom GEN2 USB HID Examples and Documentation |
|
