 Products Details
Item#: 705007
Name: USB HID 1Ch Programmable PCB
Weight: 0.35 lbs
LeadTime: 2-3 Days
Price(USD): ea
    Qty 1 - 19$35.47
    Qty 20 - 99$31.39
    Qty 100 - 499$27.67
    Qty 500 - 999$26.09
    Qty 1000+ $23.54
Qty

Click on Image for larger view

Description:

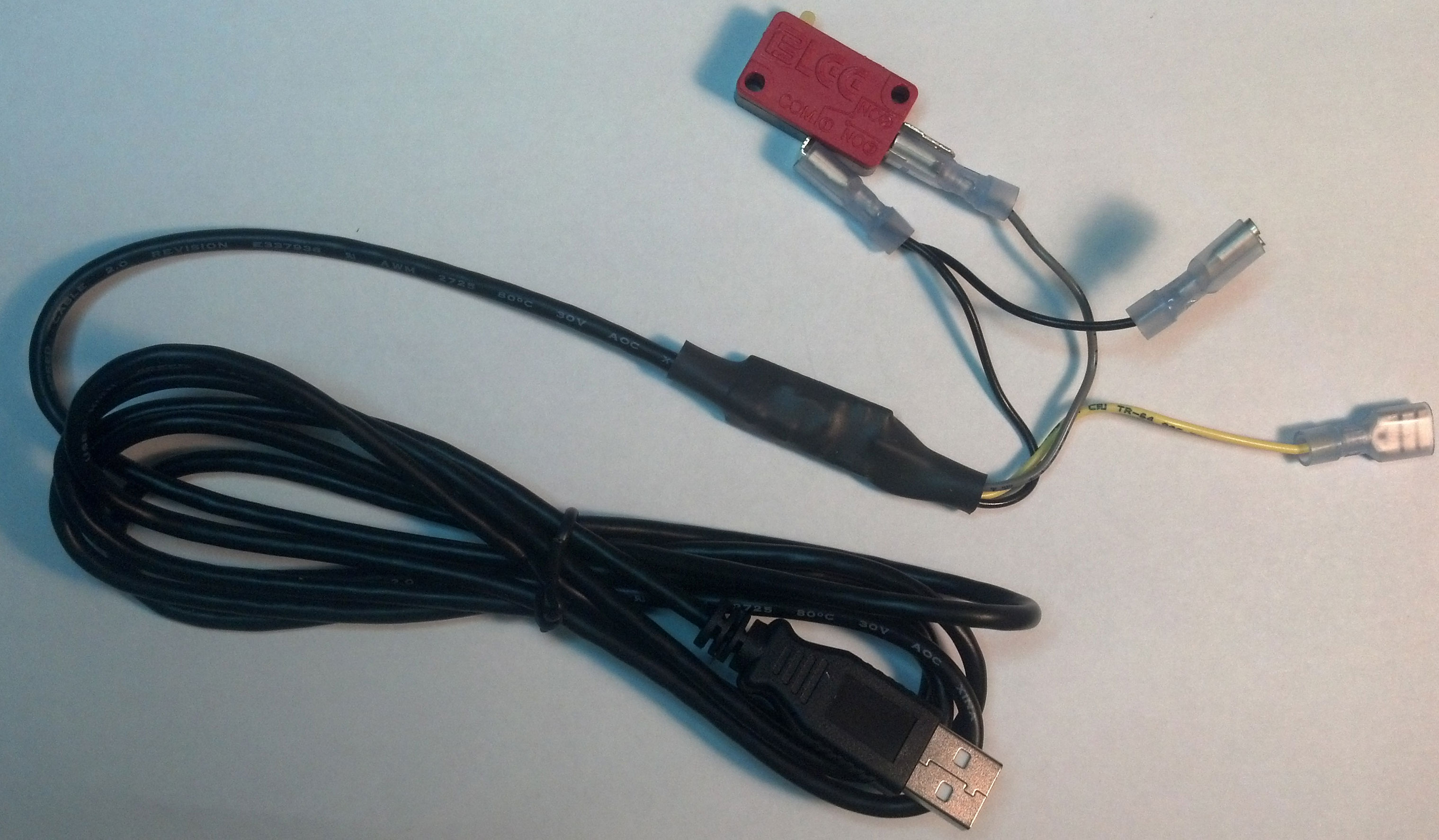

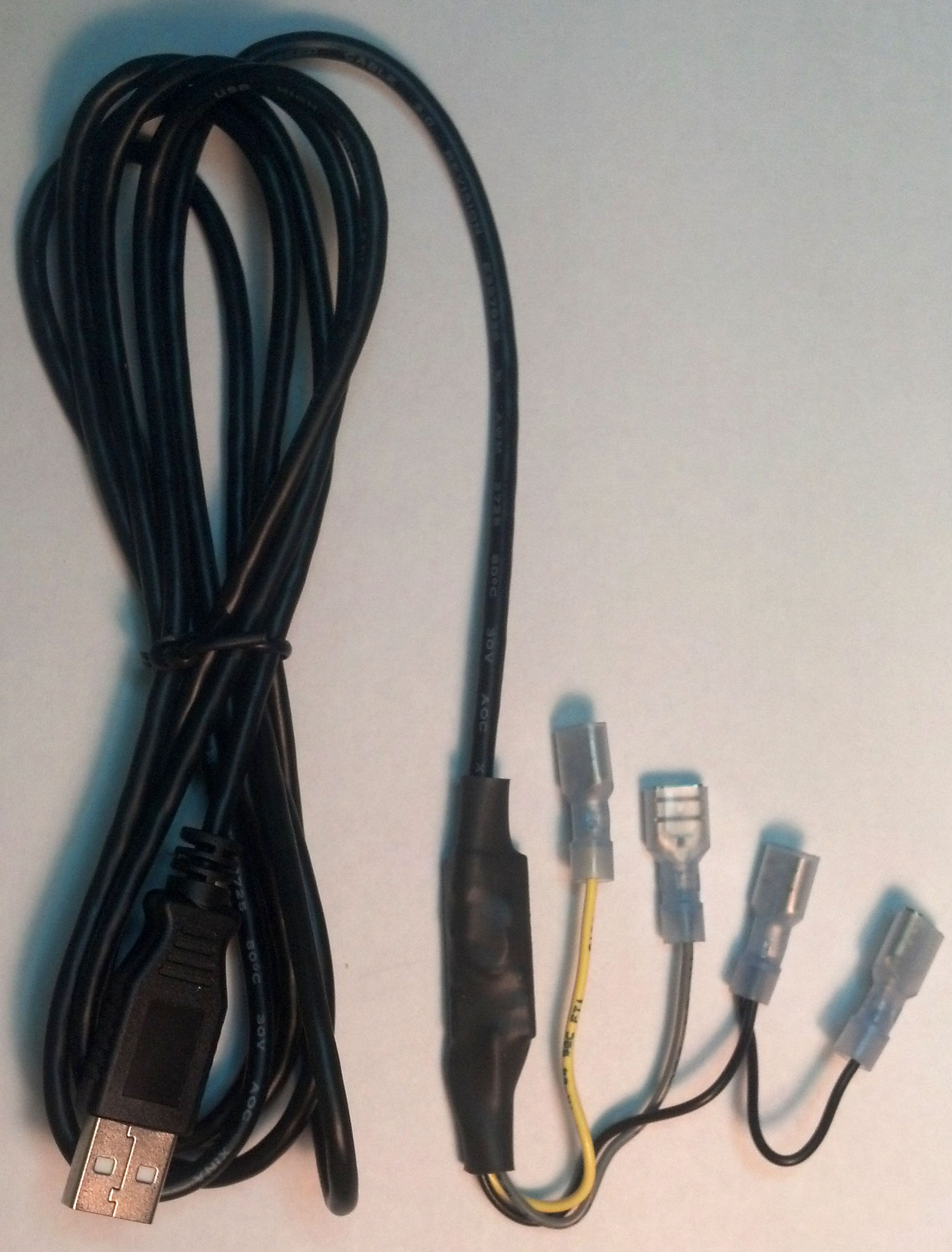

Programmable 1 channel PCB board with 2M USB Cable and spade connectors.
This device has 1 inputs and 1 outputs. The 1 inputs can be programmed to emulate keycodes, mouse buttons and joystick buttons or can be read via software.
The Output can be used as generic control such as to drive a LED.
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the DelcomDLL and all generation 2 commands.
Supports all Major operating systems (32 and 64 bit). Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load. Unique serial number in each device.
Self Powered from the USB port.
PCB Dimensions: 1.0" by 0.45", PCB used 705005
2M USB Cable included.
Wire Colors: (Wire length 4")
Black - Common (Ground) - Used for both input and output.
Grey - Input 1 (Switch) - Short to Ground to activate.
Yellow - Output 1 (LED) - Goes high (+5VDC*) when active.
*Output current depends on internal resistor used. Contact us for more info.
Spade connectors are 0.250"


DECLARATION OF CONFORMITY
RELATED PRODUCTS
705000 USB HID 4Ch Programable PCB $28.47
705002 USB HID 4Ch Programable PCB w/Mini USB Conn$30.84
705004 USB HID 4Ch Programable PCB w/B USB Conn$31.37
705006 USB HID 1Ch Programable PCB w/Mini USB Conn$29.26
706570 Big Dome Red Button$12.42
SOFTWARE
890672 Delcom Setup Utility
Delcom DLL Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
WEBPAGE
900000 Delcom GEN2 USB HID Examples and Documentation
