 Products Details
Item#: 705000
Name: USB HID 4Ch Programable PCB
Weight: 0.35 lbs
LeadTime: 2-3 Days
Price(USD): ea
    Qty 1 - 19$30.18
    Qty 20 - 99$25.86
    Qty 100 - 499$21.92
    Qty 500 - 999$20.25
    Qty 1000+ $17.54
Qty

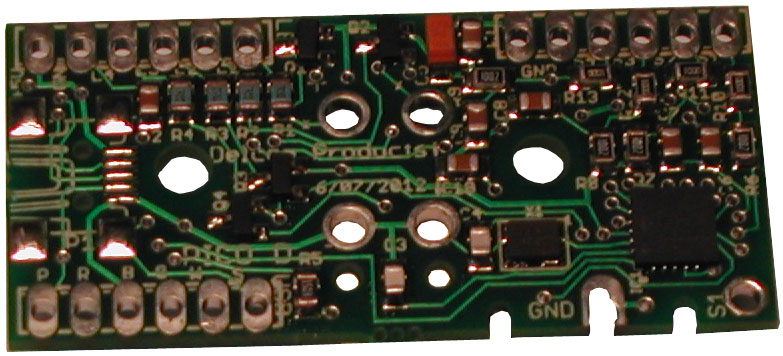

Click on Image for larger view
 Description:
Programable 4 channel PCB board with no USB Connector (USB Cable must be soldered to the board).
This PCB has 4 inputs and 4 outputs. The 4 inputs can be programmed to emulate keycodes, mouse buttons and joystick buttons or the I/O can be controlled via software.
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands.
Supports all Major operating systems (32 and 64 bit). Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load. Unique serial number in each device.
Self Powered from the USB port.
PCB Dimensions: 1.8" by 0.85"
USB Cable not included.
Connection Pad Drawing
Board Schematic
Board Drawing

Applications: Controls, Process Equipment, Automated Processes, Medical Equipment, Gaming, Special Needs

DECLARATION OF CONFORMITY
RELATED PRODUCTS
705002 USB HID 4Ch Programable PCB w/Mini USB Conn$32.69
705003 USB HID 4Ch Programable PCB w/Enclosure & Mini USB Conn$41.17
705004 USB HID 4Ch Programable PCB w/B USB Conn$33.25
803503 USB Cable A-Bare Black$7.48
803504 USB Cable A-Bare White$7.48
SOFTWARE
890672 Delcom Setup Utility
Delcom DLL Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
WEBPAGE
900000 Delcom GEN2 USB HID Examples and Documentation
