 Products Details
Item#: 902110
Name: USB HID LS Interface Module w/Pwr Regulators
Weight: 0.1 lbs
LeadTime: 10 Days
Price(USD): ea
    Qty 1 - 19$63.83
    Qty 20 - 99$58.02
    Qty 100 - 499$52.22
    Qty 500 - 999$46.42
    Qty 1000+ $43.52

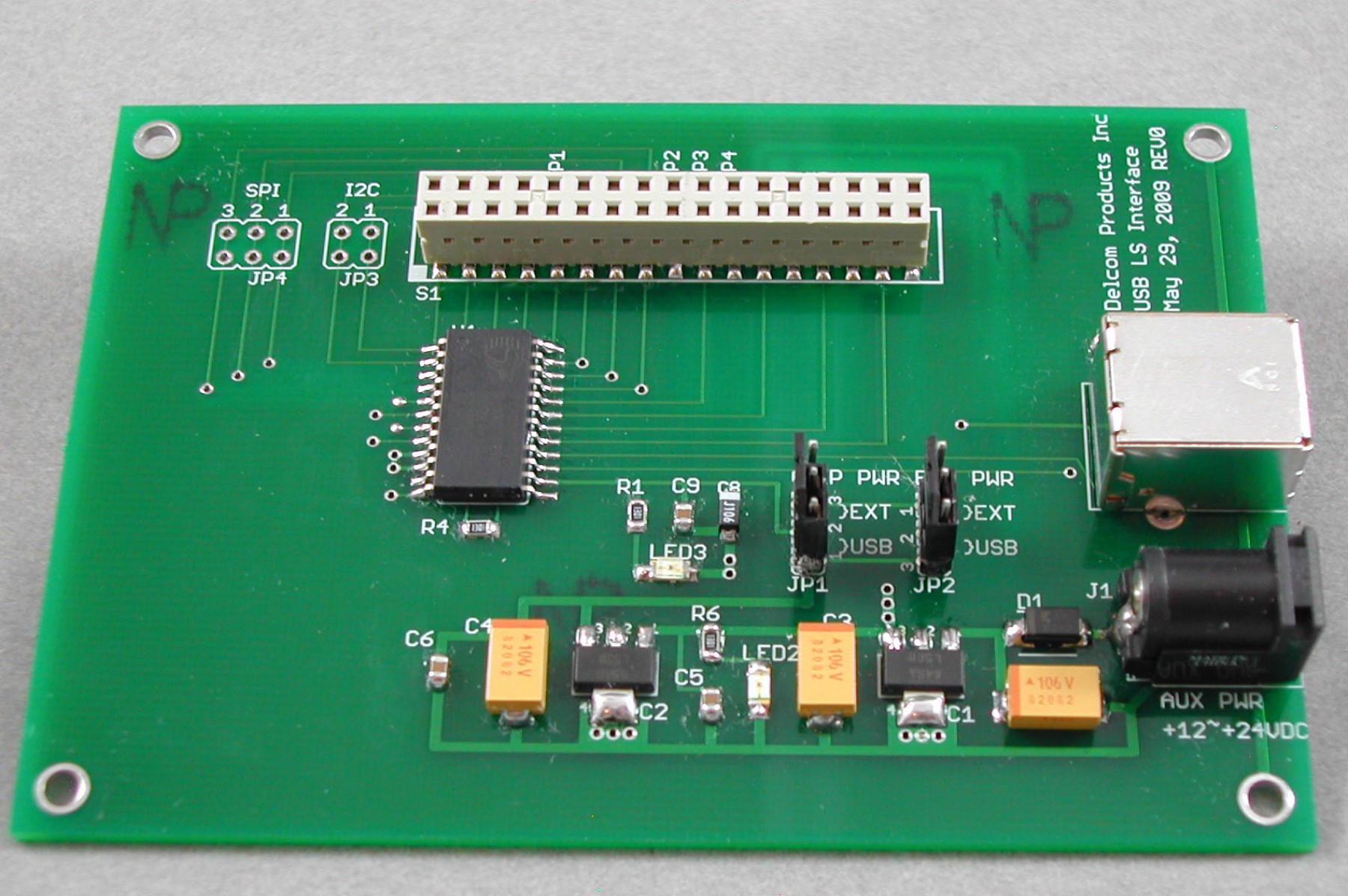

Click on Image for larger view

Description:
USB HID Low Speed Interface Module with Power Regulators
USB interface for delcom modules. This module includes the power regulator to provide more power to the I/O modules.
Includes 2 Meter USB cable.
Wall Transformer not included (see item 902190 below).
Dimensions: 4"x2.75" (101.6mm x 69.85mm)

USB LS Module DataSheet
USB LS Module Schematic
USB LS Module PCB

Note(2) This product is based on a Cypress Microprocessor that has been discontinued. This product is no longer available. See current USB Chip Sets.
DATASHEET
USB HID G2 Datasheet USB HID G2 Datasheet. Datasheet for all the Delcom USB HID products.
RELATED PRODUCTS
902190 Power Supply 12VDC 0.5Amps$9.87
SOFTWARE
Delcom DLL Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
WEBPAGE
900000 Delcom GEN2 USB HID Examples and Documentation
902100 Delcom Modules
ThirdPartySupport Third Party Support Page. Linux, LabView, Delphi.
