 Products Details
Item#: 902670
Name: USB HID LS 16 GPIO CHIP SOIC24
LeadTime: 2-4 Days
Price(USD): ea
    Qty 1 - 99$8.28
    Qty 100 - 499$6.21
    Qty 500 - 999$5.69
    Qty 1000+ $5.18
Qty

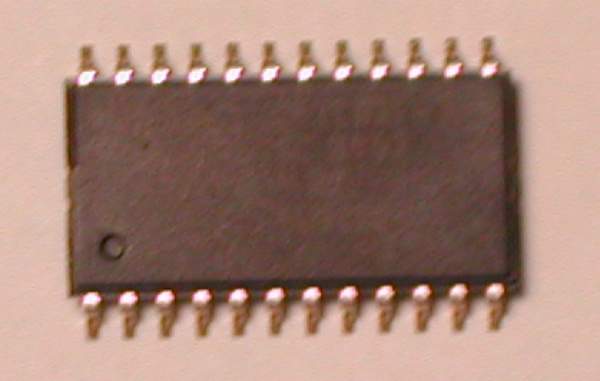

Click on Image for larger view

Description:
Preprogrammed USB HID Chip 16 GPIO
Based on the Cypress CY7C637xx USB chips.
Package: 24 Lead SOIC S13 (300-Mil)
16 programmable Input/Output pins.
Minimum external required parts; 1 USB Chip,1 Resistor and 2 Caps.
Features; 16 GPIO, I2C Port, SPI Port, Event counter, 1 and 8 byte buffered data mode with handshaking, 64 Bit I/O Command, Clock generator with variable duty cycle, Variable current sink control. Self powered from the USB Cable. Up to 450mA available to the user. Unique serial number in each chip.
Uses the built in HID driver.

Supports Win98, ME, Win2000, XP & Mac OS X.
Add USB to your existing or future products without the hassle of learning USB and driver development.


DATASHEET
SOIC 24 Package SOIC 24 300 mil Package Diagram
