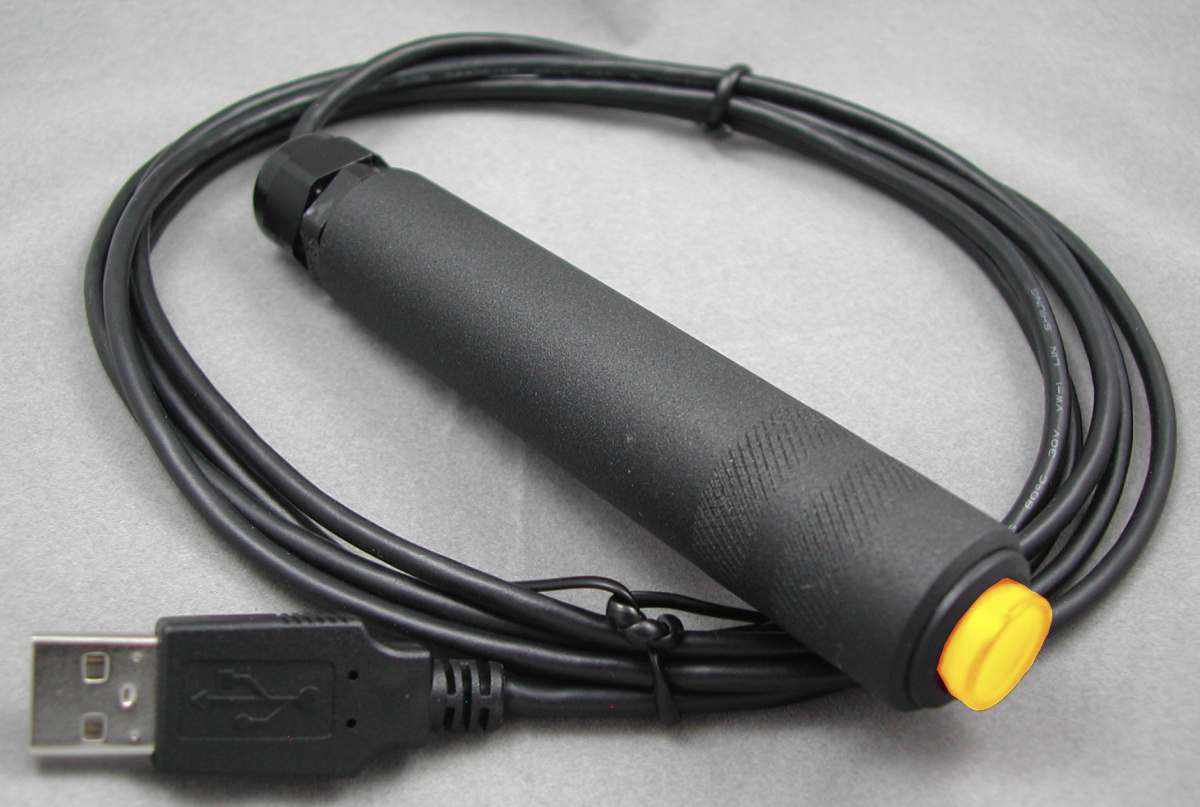

USB HID Hand Held Yellow Button Switch with 2 meter USB cable.
Momentary push button is illuminated red when device is connected to a USB host.

Simple plug and play technology using the USB HID built in driver.
Device is powered and read via the USB port. Based on delcom 902270 chipset.
Unique serial number in each device.
Dimensions are 4" long by 0.85" in diameter. Aluminum Enclosure.

The switch can be used with our footctrl software, example programs or custom software.
Switch is connected to pin P0.0 of the USB micro. See the USBHIDIO data sheet below.
Switch status can be read with HID read command 100 or with the DelcomDLL DelcomReadPorts command.

Applications: Process Equipment, Automated Processes, Medical Equipment, Gaming, Special needs
