Products Details

Item#:	902142-R
Name:	I2C Relay Out 8 Module w/Rt Spade
Weight:	0.1 lbs
LeadTime:	10 Days
Price(USD): ea
Qty 1 - 19	$106.28
Qty 20 - 99	$100.37
Qty 100 - 499	$94.48
Qty 500 - 999	$88.57
Qty 1000+	$82.66
Qty

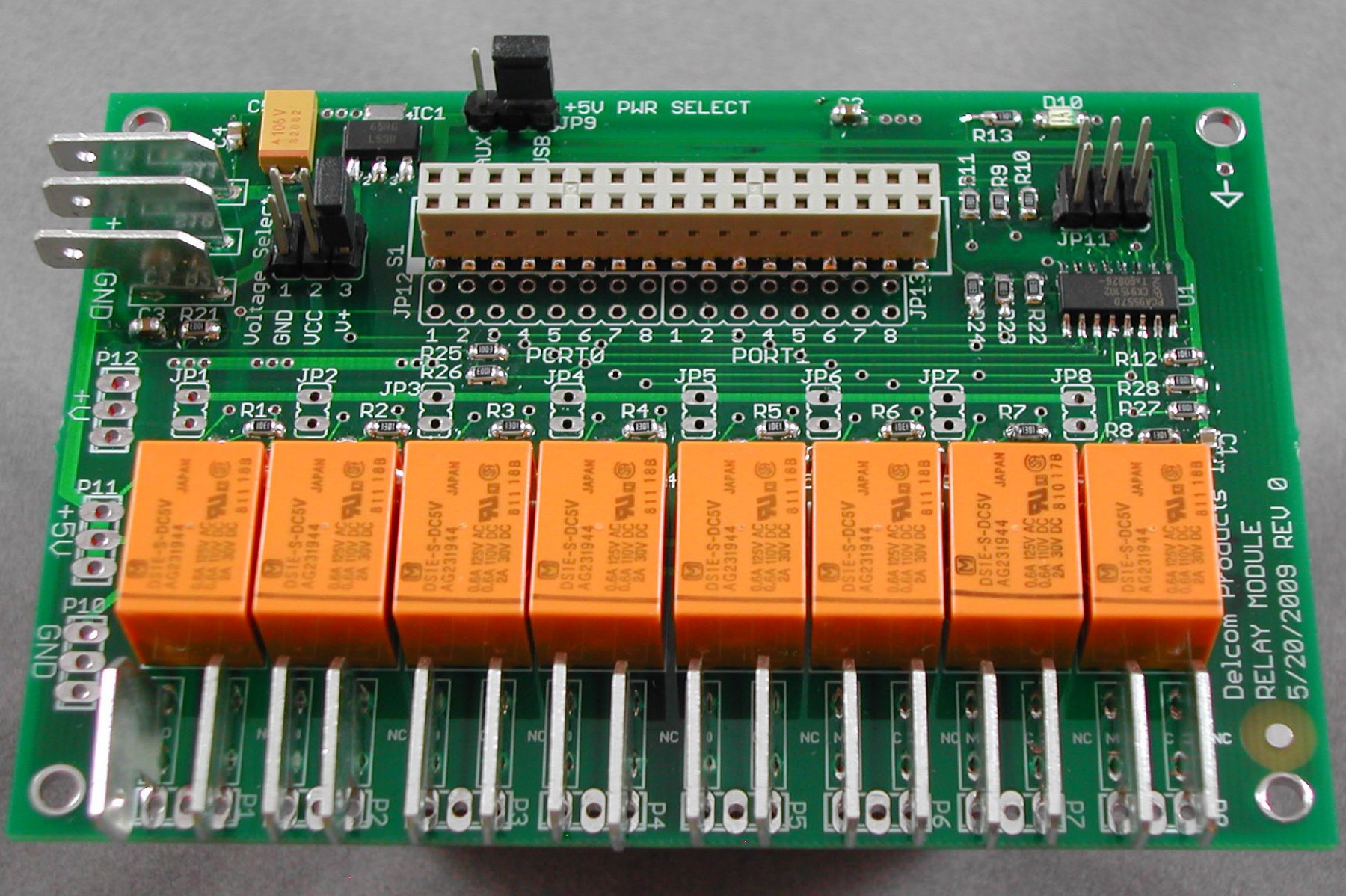

Click on Image for larger view

Description:
I2C Relay Out 8 Module w/Right Angle Spade Connectors
This boards can control 8 relays via I2C commands.
Relays are control from the I2C Chip, I2C Address b0110xxx(R/w).
I2C Chip NXP PCA9557 data sheet
Relay Max current: 2A at 30VDC, 0.6A 125VAC, 0.6A at 110VDC.
Includes: Mount Hardware
Dimensions: 4"x2.75" (101.6mm x 69.85mm)

Relay Module DataSheet
Relay Module Schematic
Relay Module PCB

DECLARATION OF CONFORMITY

SOFTWARE
890504	I2C Example Code
890650	USB HID MFC C#.NET I2C Example
TestI2CRelay8.bat	A windows command line batch file to test the module relay board PN#902142 over I2C. Requires USBCMDAP.exe
