 Products Details
Item#: 902122
Name: USB HID HS 20 Pin Interface Module w/ RS232 & Buzzer
Weight: 0.1 lbs
LeadTime: InStock
Price(USD): ea
    Qty 1 - 19$71.08
    Qty 20 - 99$65.28
    Qty 100 - 499$59.47
    Qty 500 - 999$53.67
    Qty 1000+ $50.77
Qty

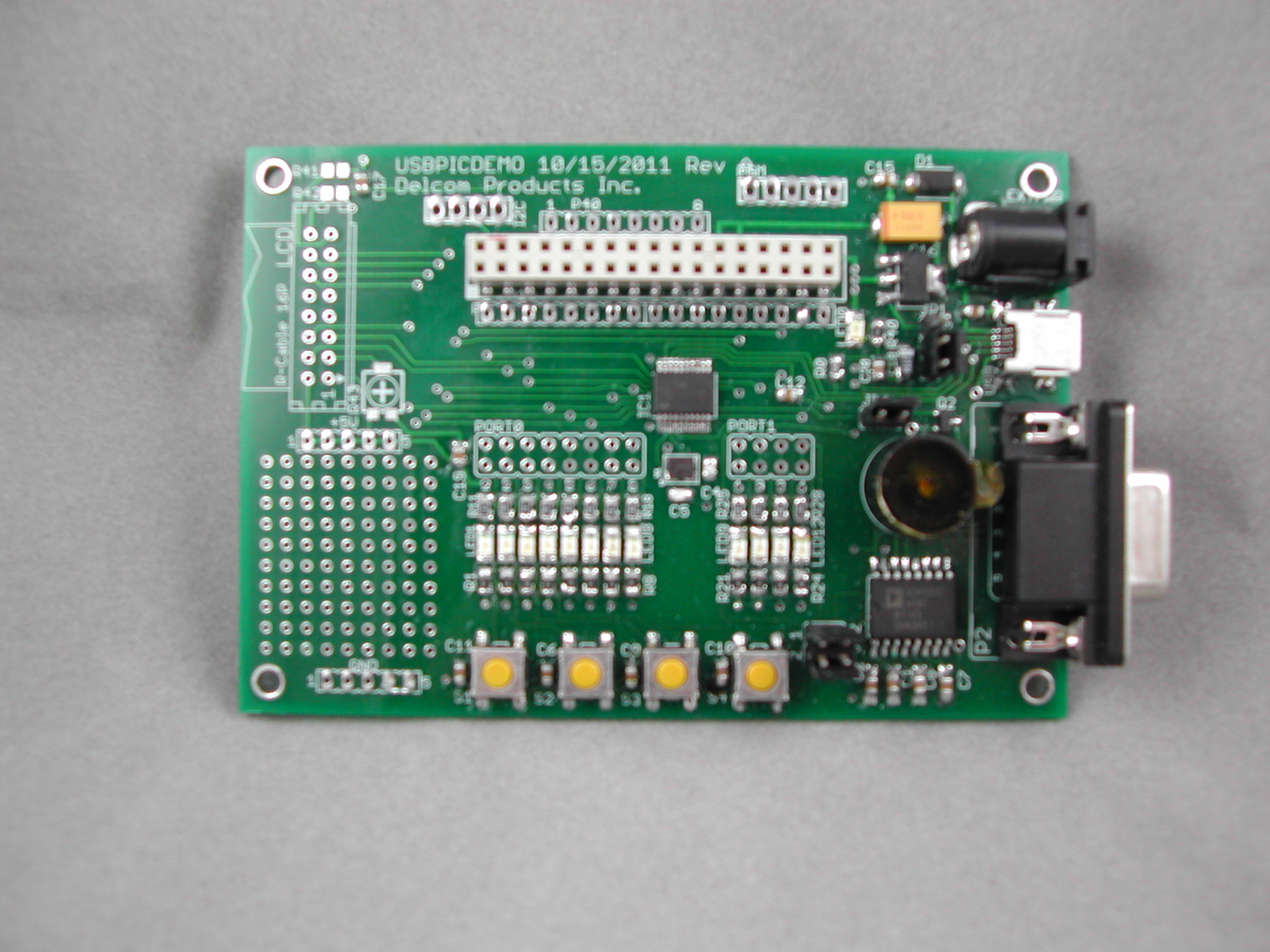

Click on Image for larger view

Description:
USB HID High Speed 20 Pin Interface Module with RS232 & Buzzer
USB interface for delcom modules. This module includes the RS232 port, 16 LEDs, 4 switch, buzzer, power regulator.
Includes 2 Meter USB cable.
Board can be self power from the USB port or external power can be used (see item 902190 below).
Dimensions: 4"x2.75" (101.6mm x 69.85mm)

902120 Schematic
902120 PCB
PIC18F14K50 MicroChip Datasheet


DECLARATION OF CONFORMITY
