Home ->Products ->Product Details
 Products Details
Item#: 902120
Name: USB HID HS 20 Pin Interface Module Demo Brd
Weight: 0.1 lbs
LeadTime: 10 Days
Price(USD): ea
    Qty 1 - 19$58.38
    Qty 20 - 99$52.24
    Qty 100 - 499$46.08
    Qty 500 - 999$39.93
    Qty 1000+ $36.86
Qty

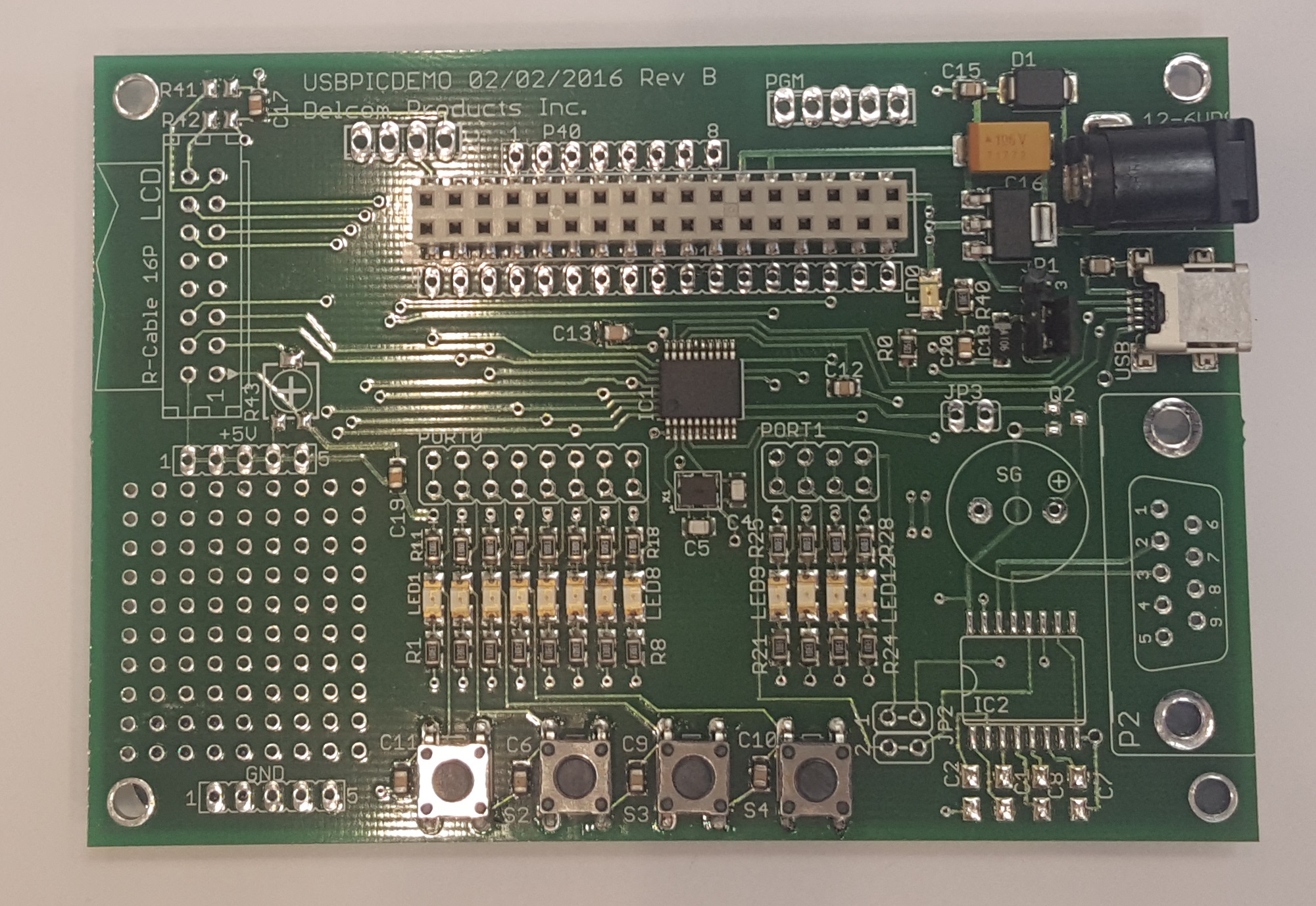

Click on Image for larger view
 Description:
USB HID High Speed 20 Pin Interface Module
USB interface for delcom modules. This module includes the 6 LEDs, 4 switch, power regulator.
Includes 2 Meter USB cable.
Board can be self power from the USB port or external power can be used (see item 902190 below).
Dimensions: 4"x2.75" (101.6mm x 69.85mm)

902120 Schematic
902120 PCB
PIC18F14K50 MicroChip Datasheet


DECLARATION OF CONFORMITY
RELATED PRODUCTS
902190 Power Supply 12VDC 0.5Amps$9.87
902251-SSOP20 USB HID FS 14 GPIO CHIP SSOP20$7.34
SOFTWARE
Delcom DLL Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
WEBPAGE
900000 Delcom GEN2 USB HID Examples and Documentation
902100 Delcom Modules
