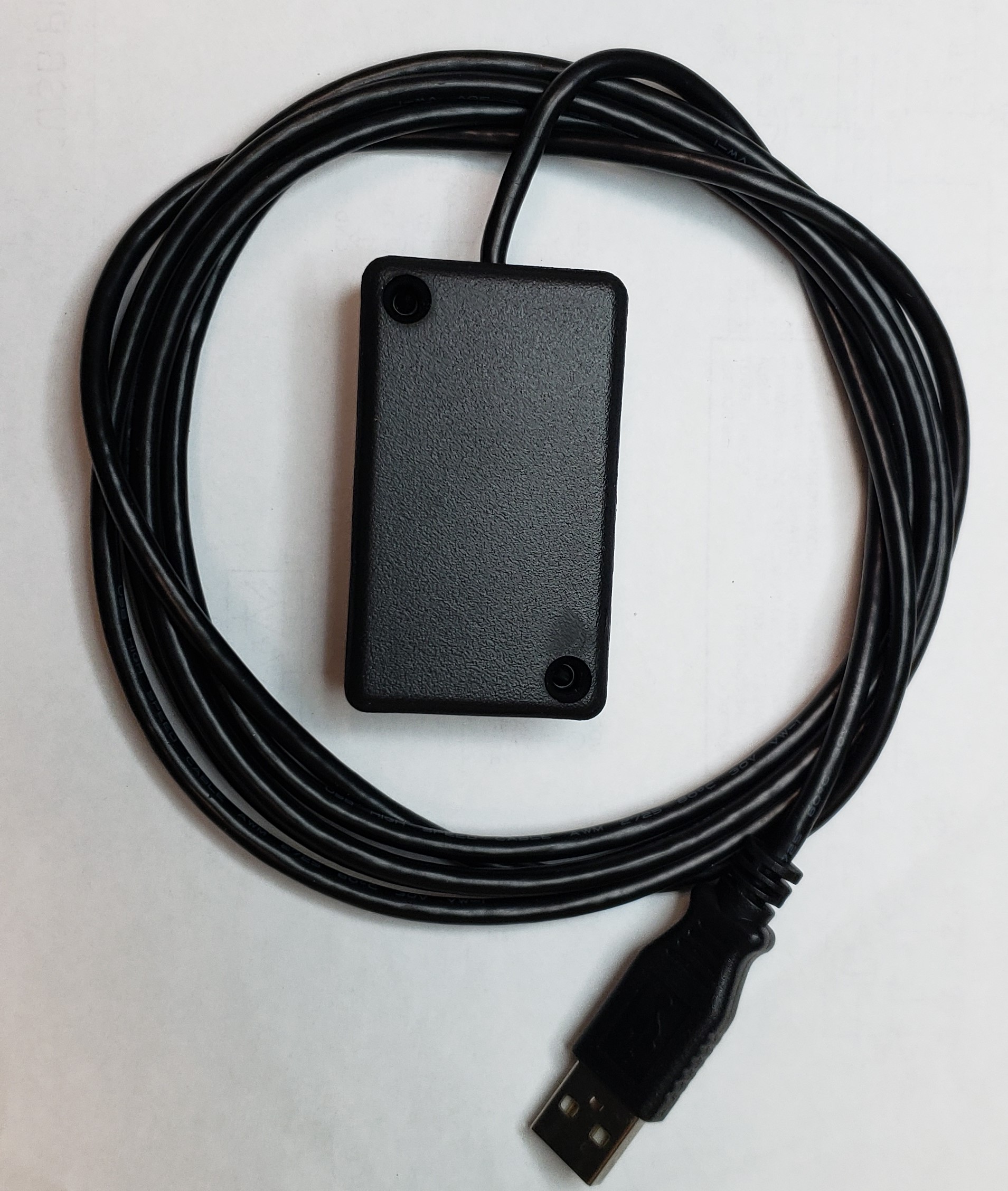

Description:USB G2 Input Single Relay Module 5VDC
This module uses a relay to control the input of P0.0. The relay coil voltage is 5VDC.

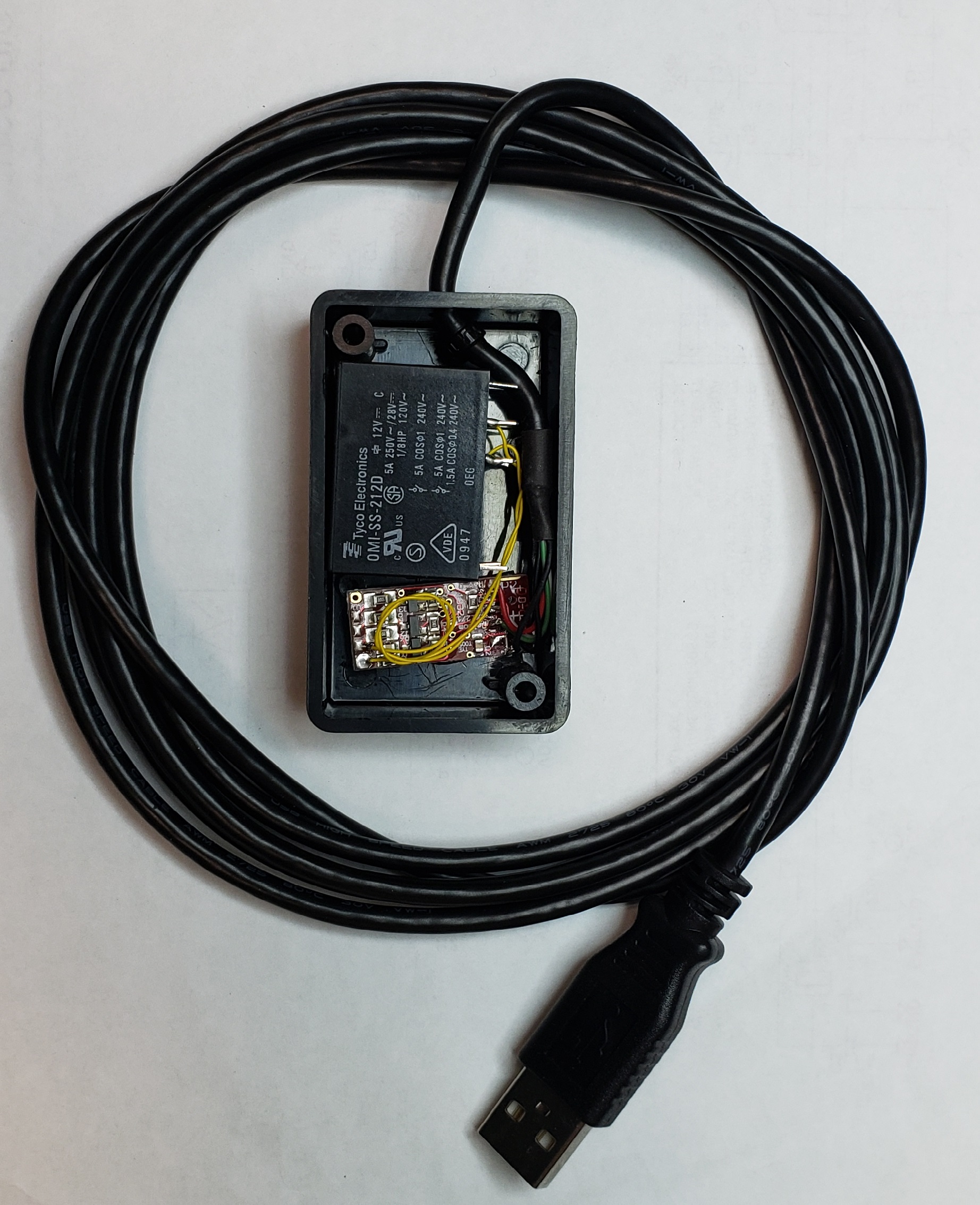

User must solder two wire to the coil side of the relay to use. And drill hole for the wire to exit the plastic case.
Powered and controller via the USB port.
Includes: 2M USB Mini Cable
Dimensions: 1.38" x 2.36" x 0.79"
Coil input voltage also available in 5VDC, 12VDC, 24VAC and 120VAC.
