 Products Details
Item#: 706622-F
Name: USB HID Programmable Single Button Emergency Switch w/2M Cable & Flange
Weight: 0.4 lbs
LeadTime: 2-4 Days
Price(USD): ea
    Qty 1 - 19$86.49
    Qty 20 - 99$83.03
    Qty 100 - 499$80.72
    Qty 500 - 999$78.42
    Qty 1000+ $76.11

Click on Image for larger view

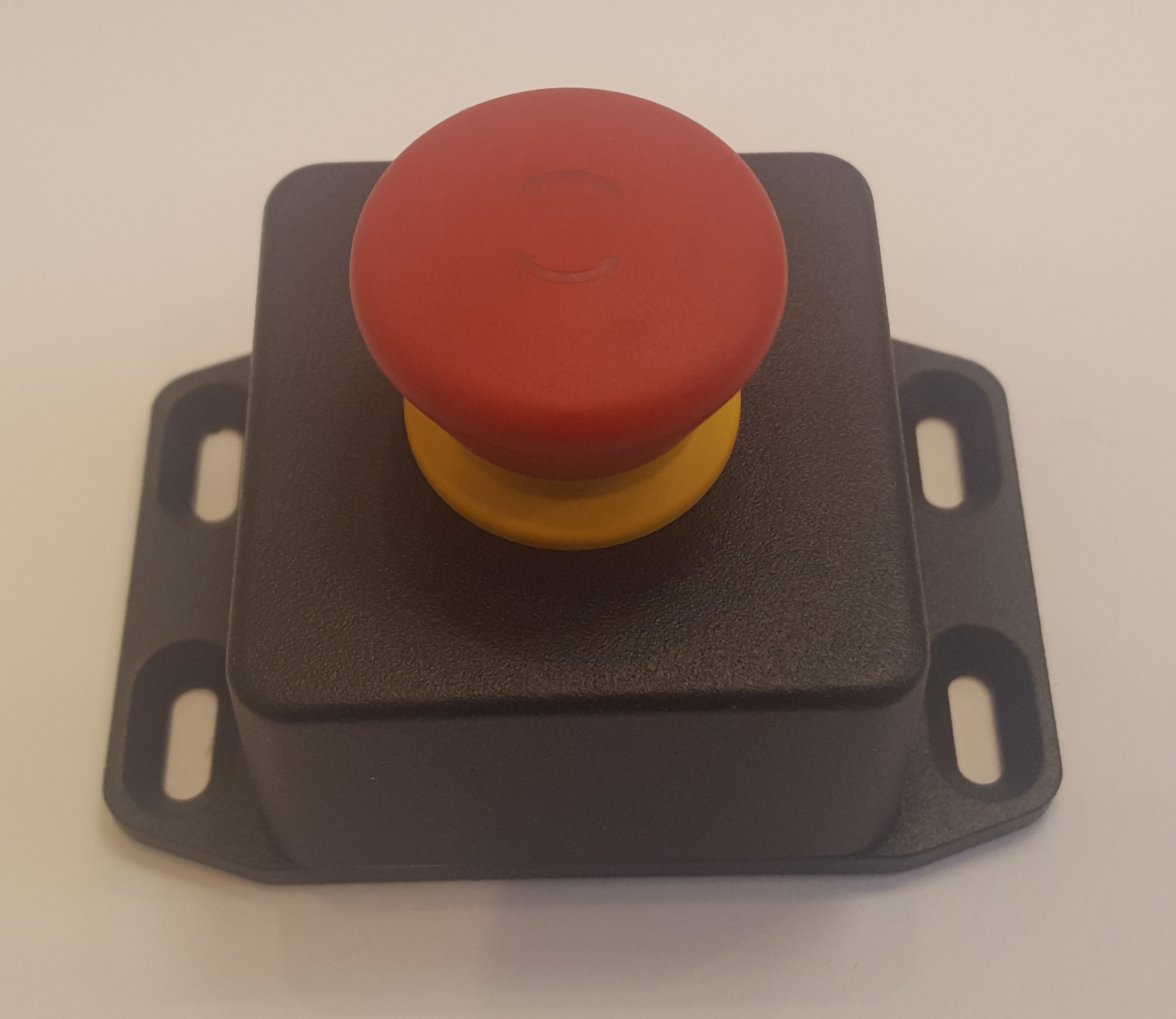

USB HID Programmable Single Emergency Button Switch with 2M Cable and Flange Mount.
Button action: Toggle with twist lock release.
This device can be programmed to emulate keycodes, mouse buttons and joystick buttons .
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands(Button connected to pin P0.0).
Supports all Major operating systems (32 and 64 bit). Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load. Unique serial number in each device, for use with multiply devices.
Self Powered from the USB port. Die Cast Aluminum Enclosure.
Total height: 2.1", Button diameter: 1.6".
Enclosure Dimensions are 1.98" x 1.98" 1.235" (50.5mm x 50.5mm x x 31.5mm).
Includes 2 Meter USB Cable.

Applications: Process Equipment, Automated Processes, Medical Equipment, Gaming, Special needs

706601-5M USB HID Programable Single Button Switch w/5M Cable$61.15
706601-F USB HID Programable Single Button Switch w/2M Cable & Flange Mount$58.96
706601-F-5M USB HID Programable Single Button Switch w/5M Cable & Flange Mount$62.24
890672 Delcom Setup Utility
Delcom DLL Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
900000 Delcom GEN2 USB HID Examples and Documentation
