 Products Details
Item#: 705921
Name: USB PTT MIC w/ Line Out Audio
Weight: 3 lbs
Price(USD): ea
    Qty 1 - 9$372.13
    Qty 10+ $359.17

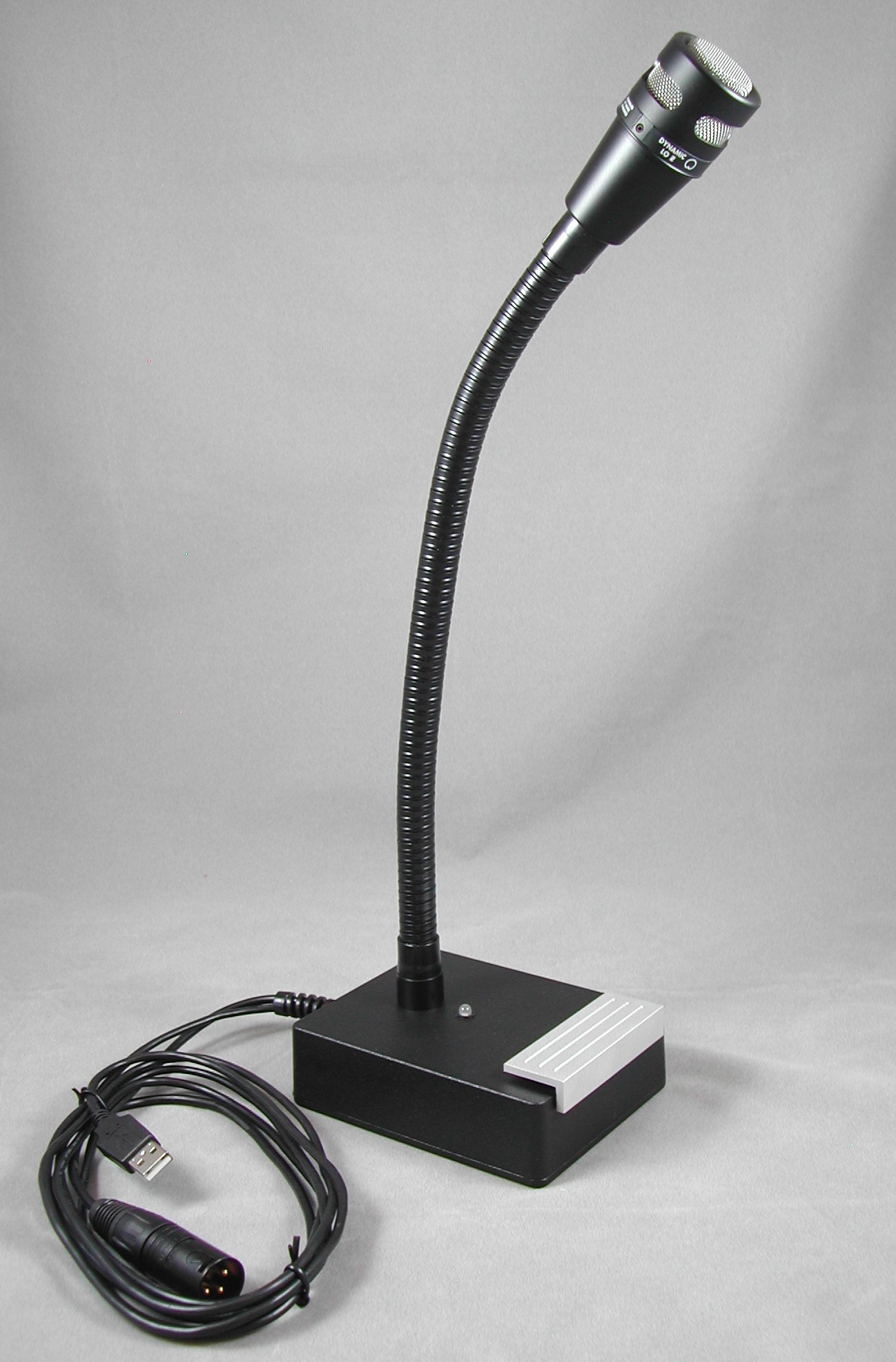

Click on Image for larger view

This part has been discontinued. See link below for alternate part.
Part Number: 705931

USB Push To Talk Mic w/Line Out Audio
Base Dimensions: 4.705"x3.701"x1.339" (94mm x 119.5mm x 34mm)
Includes: 12" GooseNeck Mic, 6ft(2Meter) USB cable and male 1/8 mono cable.

Momentary Switch can be programmed for four modes; KEYBOARD, MOUSE, JOYSTICK and CUSTOM mode. With KEYBOARD mode the device can send any key code including the ALT, CTRL, SHIFT and GUI modifier keys. With MOUSE mode you can send the LEFT, RIGHT or CENTER mouse button events. With JOYSTICK mode you can send joystick button events 1 to 16. With CUSTOM mode you can use your custom software application to interface to the device (see Generation 2 examples below).
Supports all Major operating systems (32 and 64 bit). Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load.
Bicolor LED: Green when device is powered up and red when button is held down.
Microphone Type: Shure Model 503BG. Freq Response: 100-7000hz.
Audio Output: Line Out level (Built in mic pre amp)
Microphone DataSheet

890672 Delcom Setup Utility
900000 Delcom GEN2 USB HID Examples and Documentation
