Description:

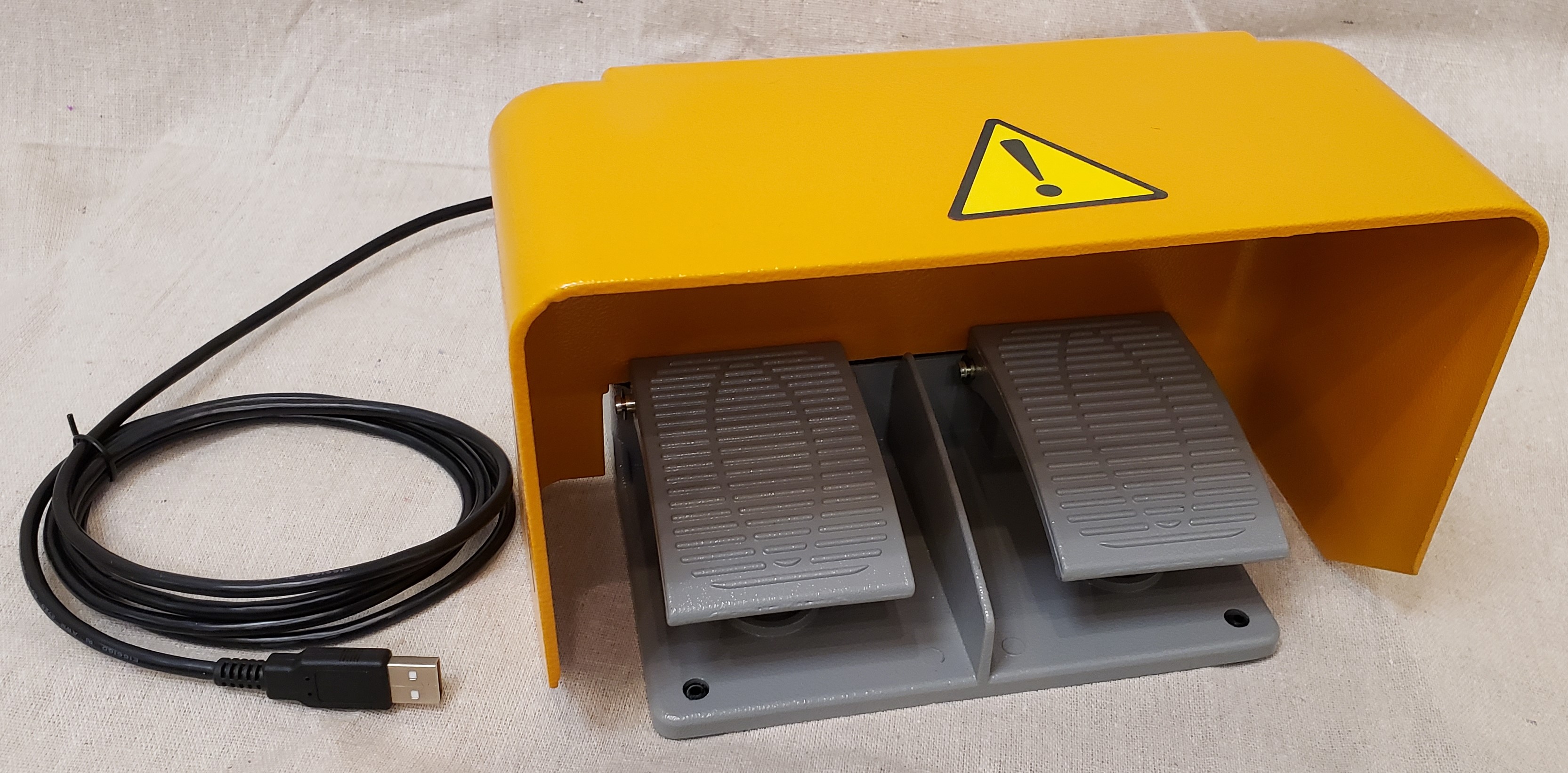

Programmable USB Guarded Dual Foot Switch.
This device can be programmed to emulate keycodes, mouse buttons and joystick buttons .
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands(Button connected to pin P0.0).
Supports all Major operating systems (32 and 64 bit).
Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load.
Unique serial number in each device, for use with multiply footswitches.
Self Powered from the USB port.
Enclosure: Cast Aluminum, Dimensions: 7.83"L x 4.7"W x 4.9"H
Includes 2 Meter USB Cable.
Applications: Controls, Process Equipment, Automated Processes
DECLARATION OF CONFORMITY
|
| 890672 | Delcom Setup Utility | |
| 900000 | Delcom GEN2 USB HID Examples and Documentation |
|
