 Products Details
Item#: 902125
Name: USB HID HS 28 Pin Interface Module Demo Brd
Weight: 0.1 lbs
LeadTime: InStock
Price(USD): ea
    Qty 1 - 19$59.08
    Qty 20 - 99$53.28
    Qty 100 - 499$47.47
    Qty 500 - 999$41.67
    Qty 1000+ $38.77
Qty

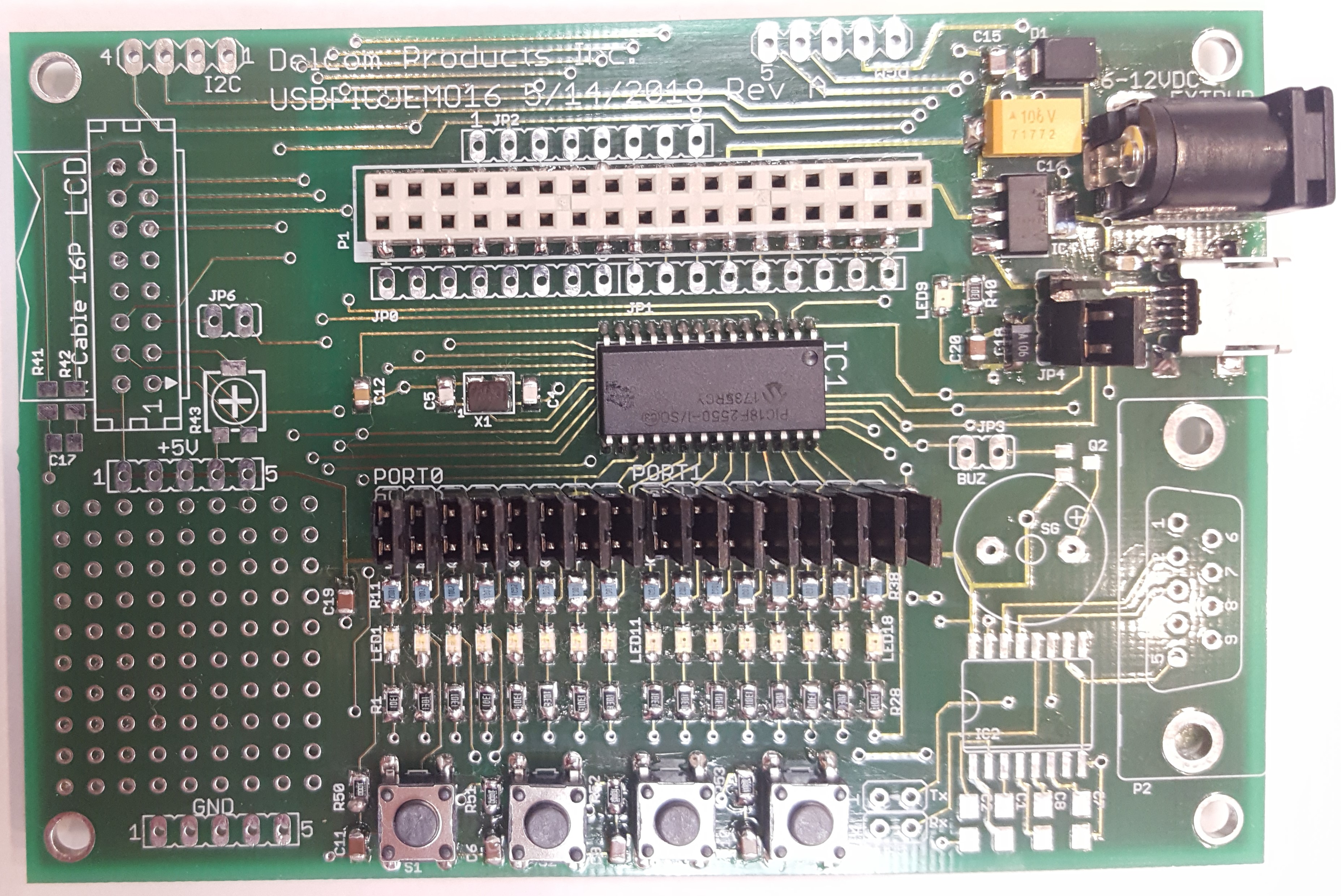

Click on Image for larger view

Description:
USB HID High Speed 28 Pin Interface Module
Micro processor: Microchip PIC18F2550.
USB interface for delcom modules. This module includes the 6 LEDs, 4 switch, power regulator.
Includes 2 Meter USB cable.
Board can be self power from the USB port or external power can be used (see item 902190 below).
Dimensions: 4"x2.75" (101.6mm x 69.85mm)

902125 Schematic
902125 PCB
PIC18F2550 MicroChip Datasheet


DECLARATION OF CONFORMITY
RELATED PRODUCTS
902190 Power Supply 12VDC 0.5Amps$9.31
902252-SOIC28 USB HID FS 19 GPIO CHIP SOIC28$8.28
SOFTWARE
Delcom DLL Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
WEBPAGE
900000 Delcom GEN2 USB HID Examples and Documentation
902100 Delcom Modules
