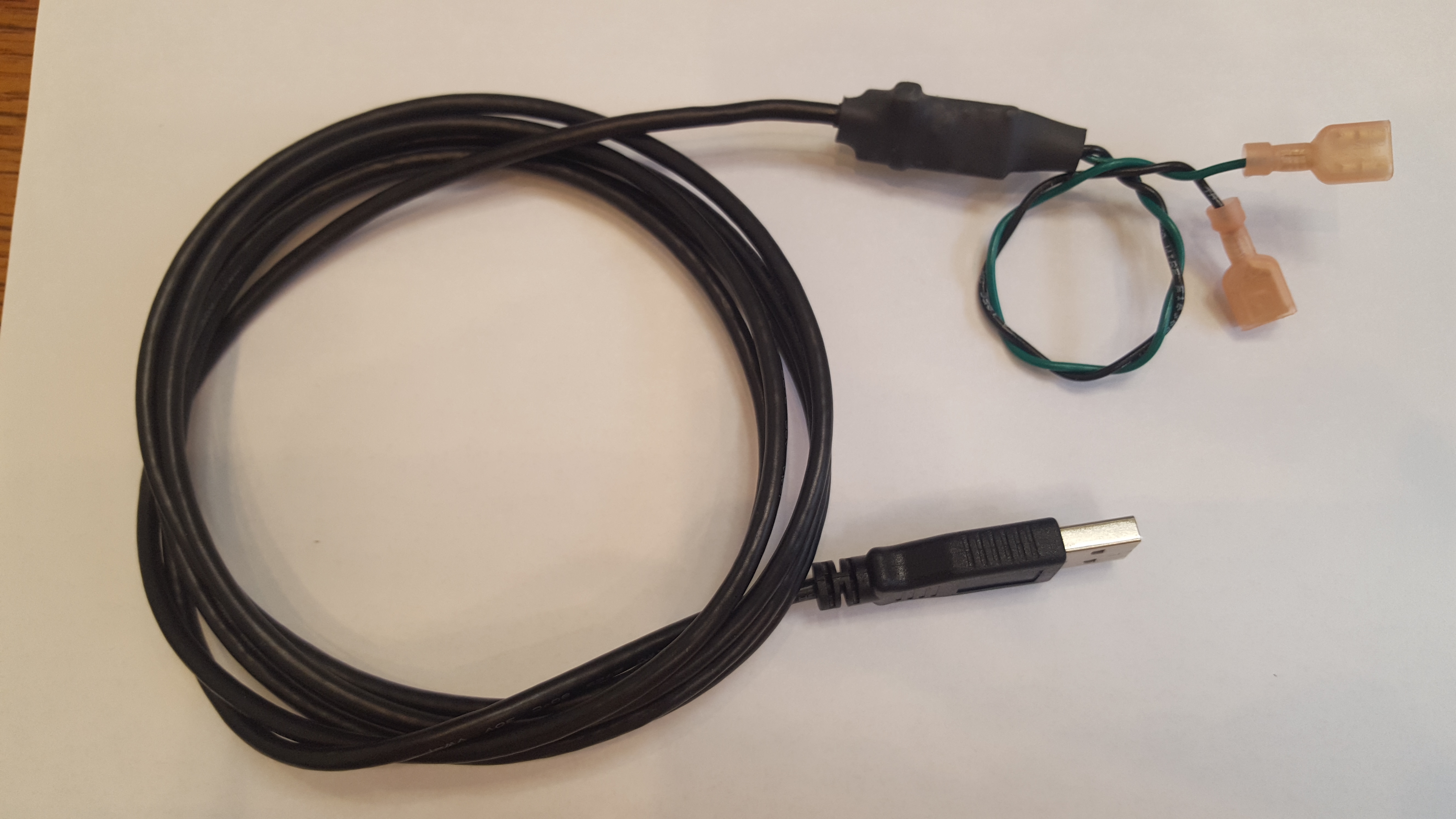

Description: Programmable 1 channel Input PCB board with 2M USB Cable and spade connectors on 6inch leads.
This device has 1 inputs. The 1 inputs can be programmed to emulate keycodes, mouse buttons and joystick buttons or can be read via software.
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the DelcomDLL and all generation 2 commands.
Supports all Major operating systems (32 and 64 bit).
Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load.
Unique serial number in each device.
Self Powered from the USB port.
PCB Dimensions: 1.0" by 0.45", PCB used 705005
2M USB Cable included.
Wire Colors: (Wire length 6")
Black - Common (Ground) - Used for both input and output.
Non-Black - Input 1 (Switch) - Short to Ground to activate.
Spade connectors are 0.250"
