 Products Details
Item#: 703600-GRD
Name: USB HID Programmable Guard Foot Switch w/2M Cable
Weight: 3.5 lbs
LeadTime: 2-3 Days
Price(USD): ea
    Qty 1 - 19$67.84
    Qty 20 - 99$62.28
    Qty 100 - 499$56.71
    Qty 500 - 999$51.14
    Qty 1000+ $45.58

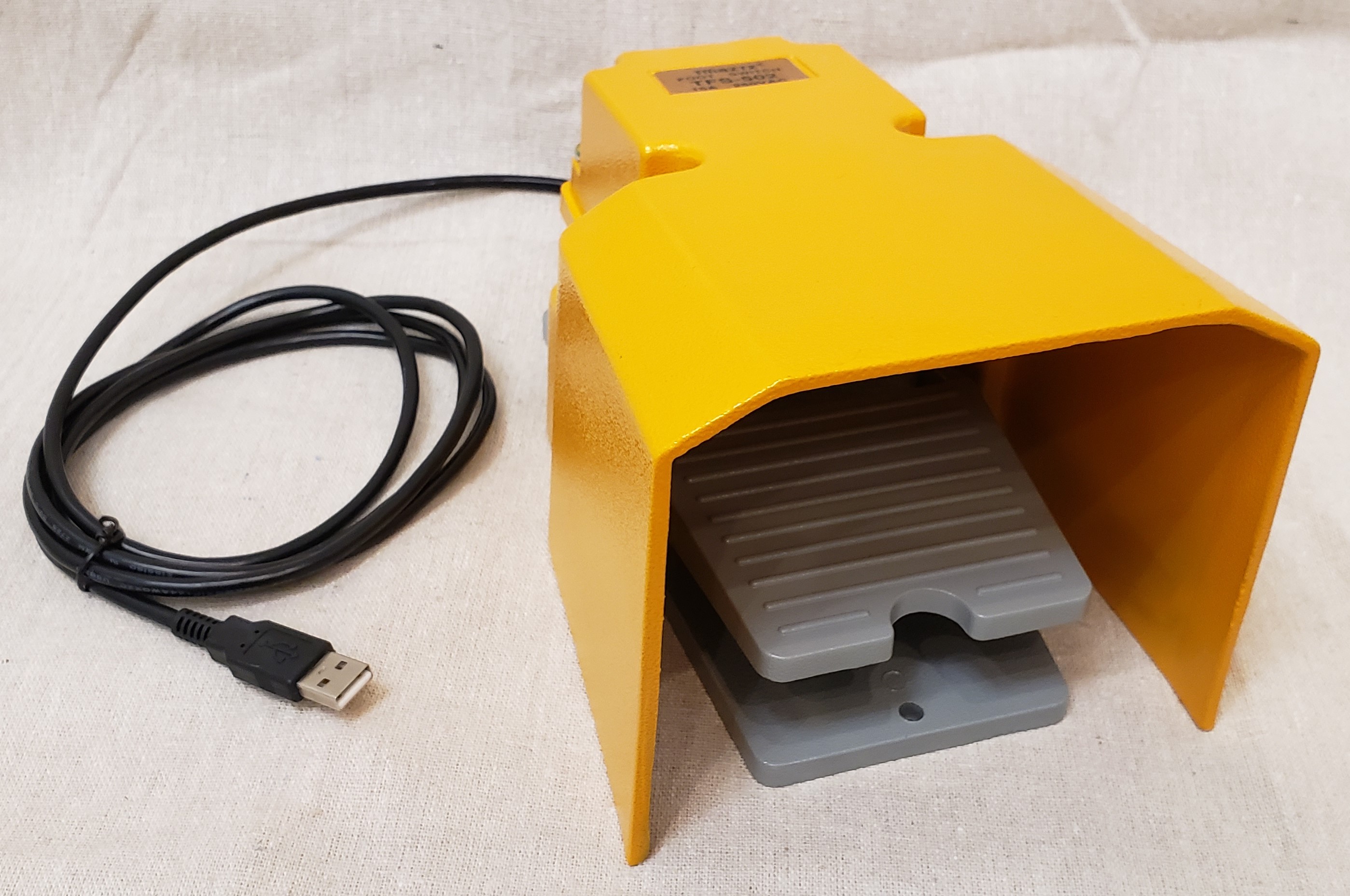

Click on Image for larger view

Programmable USB Guarded Foot Switch.
This device can be programmed to emulate keycodes, mouse buttons and joystick buttons .
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands(Button connected to pin P0.0).
Supports all Major operating systems (32 and 64 bit).
Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load.
Unique serial number in each device, for use with multiply footswitches.
Self Powered from the USB port.
Enclosure: Cast Aluminum, Dimensions: 7.83"L x 4.7"W x 4.9"H
Includes 2 Meter USB Cable.

Applications: Controls, Process Equipment, Automated Processes

890672 Delcom Setup Utility
900000 Delcom GEN2 USB HID Examples and Documentation
