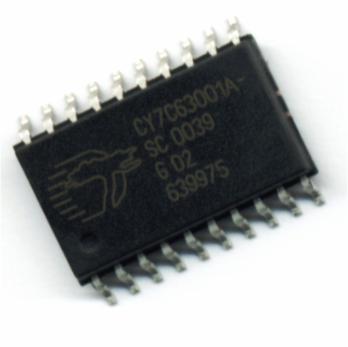

Preprogrammed USB G1 Chip 12 Bit IO
Package: 20 Lead SOIC S13 (300-Mil)
16 programmable Input/Output pins.
Minimum external required parts; 1 USB Chip,1 Resistor, 2 Caps and 1 Crystal.
Features; RS232 Serial Port (2400baud only), I2C Port, Event counter, 1 and 8 byte buffered data mode with handshaking, 64 Bit I/O Command, Clock generator with variable duty cycle, Variable current sink control. Self powered from the USB Cable. Up to 450mA available to the user. Unique serial number in each chip.
Supports Win98, ME, Win2000, XP & Mac OS X.
Add USB to your existing or future products without the hassle of learning USB and driver development.
|
| CYC63000 Datasheet | Cypress USB LS CYC63000 Data Sheet.
Relates to Delcom 802x00 USB LS IO Chips. |
| LS Migration Document | USB LS IO Chip Migration Document.
This document explains the migration path from the 802x00 parts to the new 802x70 parts. |
| Programming Manaul | USB Programming Manual. Describes the Direct and Registry methods of accessing the Delcom USB driver. Examples in C and VB. |
| SOIC 20 Package | SOIC 20 300 mil Package Diagram |
| USB LS Min Parts | USB LS IO Chip Minimum Parts Schematic for PN: 802x00. |
| USBIODS G1 Datasheet | USBIODS G1 Manual/Datasheet. |
|
| 802000 | USB Demo Brd, Rev B | $50.72  |
| 802001 | USB Low speed IO Chips, Demo Boards, Part Kits and cables. |  |
| 802004 | USB Demo Brd, Rev B w/Conn | $50.72  |
| 802270 | USB LS 10 IO CHIP SOIC18 | $8.28  |
| 802300 | USB LS 12 IO CHIP DIP20 | $8.00  |
| 802370 | USB LS 10 IO CHIP DIP18 | $8.28  |
| 802600 | USB LS 16 IO CHIP SOIC24 | $8.00  |
| 802670 | USB LS 16 IO CHIP SOIC24 | $8.28  |
| 802770 | USB LS 16 IO CHIP DIP24 | $8.28  |
| 803504 | USB Cable A-Bare White | $7.85  |
| 803506 | USB B RT Connector | $4.33  |
| 803507 | USB Minimum Parts Kit | $3.94  |
| 803514 | USB 2.0 A-B Cable | $7.85  |
| 803515 | Blank USB Demo Brd. RevB | $14.00  |
| 803517 | USB SMT Minimum Parts Kit | $3.94  |
|
| 890501 | USB Dos Utility |
| 890502 | USB 64 Bit IO |
| 890503 | Mac OSX Drivers, Generation 1 only. |
| 890504 | I2C Example Code |
| 890505 | USB I/O CVI Code |
| 890506 | Borland Example |
| 890507 | USB IO C/C++ Example |
| 890508 | USB IO VB Example |
| Delcom DLL | Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
|
| USB IO VB.NET Example | USB IO VB.NET Example
MS Visual Basic .NET |
| USBIODS Driver G1 | Delcom USB IO Driver Version USBIODS.SYS USBIODS.INF Generation 1 Only! |
|
| FAQ | Frequently Asked Questions. |
| Tech Info | Complete list for all Data Sheets, AppNotes, Software and Example code. |
| ThirdPartySupport | Third Party Support Page. Linux, LabView, Delphi. |
