Preprogrammed USB Chips Preprogrammed USB Chips with 16, 12 or 10 programmable gereral purpose input/output pins. Minimum required external parts; Enhanced preprogrammed features; I2C Port, SPI Port, Edge trigger event counter, 8 Bit buffered data mode with handshaking, 64 Bit I/O Command, Clock generator with variable duty cycle, Variable current sink control. Self powered from the USB Cable. Up to 450mA available to the user. Unique serial number in each chip. Support on all major OS systems. Example software available in C, C#, VB, VB.Net and CVI. Generation II - These IO chips and products uses the pre-installed USB HID driver. Supported on 32 and 64 bit OS systems. No driver required, driver already installed on all major OS systems. More info.. Generation I - These IO chips and products uses the Delcom driver. Requires user to preinstall the delcom driver. Delcom driver available for Windows™ 32Bit OS. Third party driver support available for Linux and MAC OS. More info..
Generation I products are NOT recommended for new designs.
Add USB to your existing or future products without the hassle of learning USB and driver development. | ||||||
| Generation II - USB HID IO Chips & Demo Boards - Click on part number to order | ||||||
|---|---|---|---|---|---|---|
| Image | PartNumber | Description | GPIO | Package | Lead Time | Price@1 |
|---|---|---|---|---|---|---|
 |

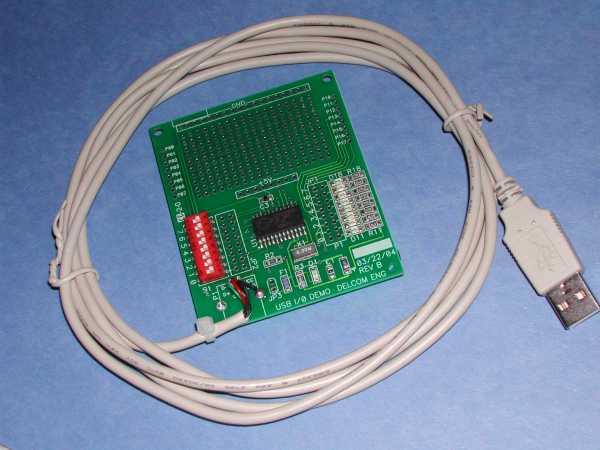

902000 | USB HID Demo Brd, Rev C w/2M Cable | 16 | SOIC24 | 2-3 Days | $49.00 |
 |
902002 | USB HID Minimum Demo Brd, Rev C w/ 2M USB Cable | 16 | SOIC24 | 2-3 Days | $39.00 |
 |
902004 | USB HID Demo Brd, Rev C w/Conn | 16 | SOIC24 | 2-3 Days | $49.00 |
 |
902005 | USB HID Minimum Demo Brd, Rev C w/Conn | 16 | SOIC24 | InStock | $39.00 |
 |
902270 | USB HID LS 10 GPIO CHIP SOIC18 | 10 | SOIC18 | InStock | $8.00 |
 |
902370 | USB HID LS 10 GPIO CHIP DIP18 | 10 | DIP18 | 3 Days | $8.00 |
 |
902670 | USB HID LS 16 GPIO CHIP SOIC24 | 16 | SOIC24 | 2-4 Days | $8.00 |
 |
902770 | USB HID LS 16 GPIO CHIP DIP24 | 16 | DIP24 | InStock | $8.00 |
|
Generation I - USB IO Chips & Demo Boards - Click on part number to order |
||||||
| Image | PartNumber | Description | GPIO | Package | Lead Time | Price@1 |
|---|---|---|---|---|---|---|
|
802000 | USB G1 Demo Brd, Rev C | 16 | SOIC24 | InStock | $49.00 |
|

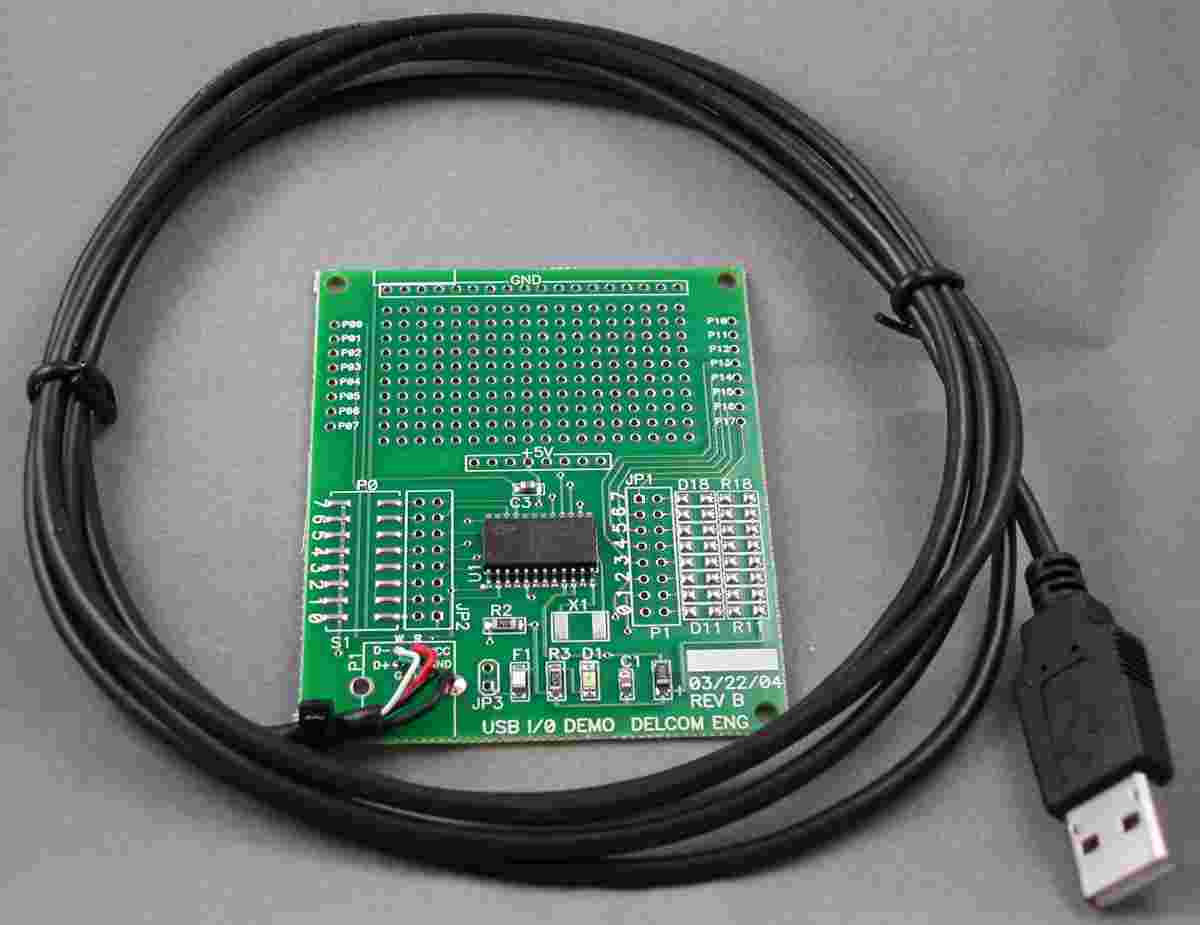

802002 | USB G1 Minimum Demo Brd, Rev C w/ 2M USB Cable | 16 | SOIC24 | InStock | $39.00 |
|
802004 | USB G1 Demo Brd, Rev C w/Conn | 16 | SOIC24 | 2-3 Days | $49.00 |
|

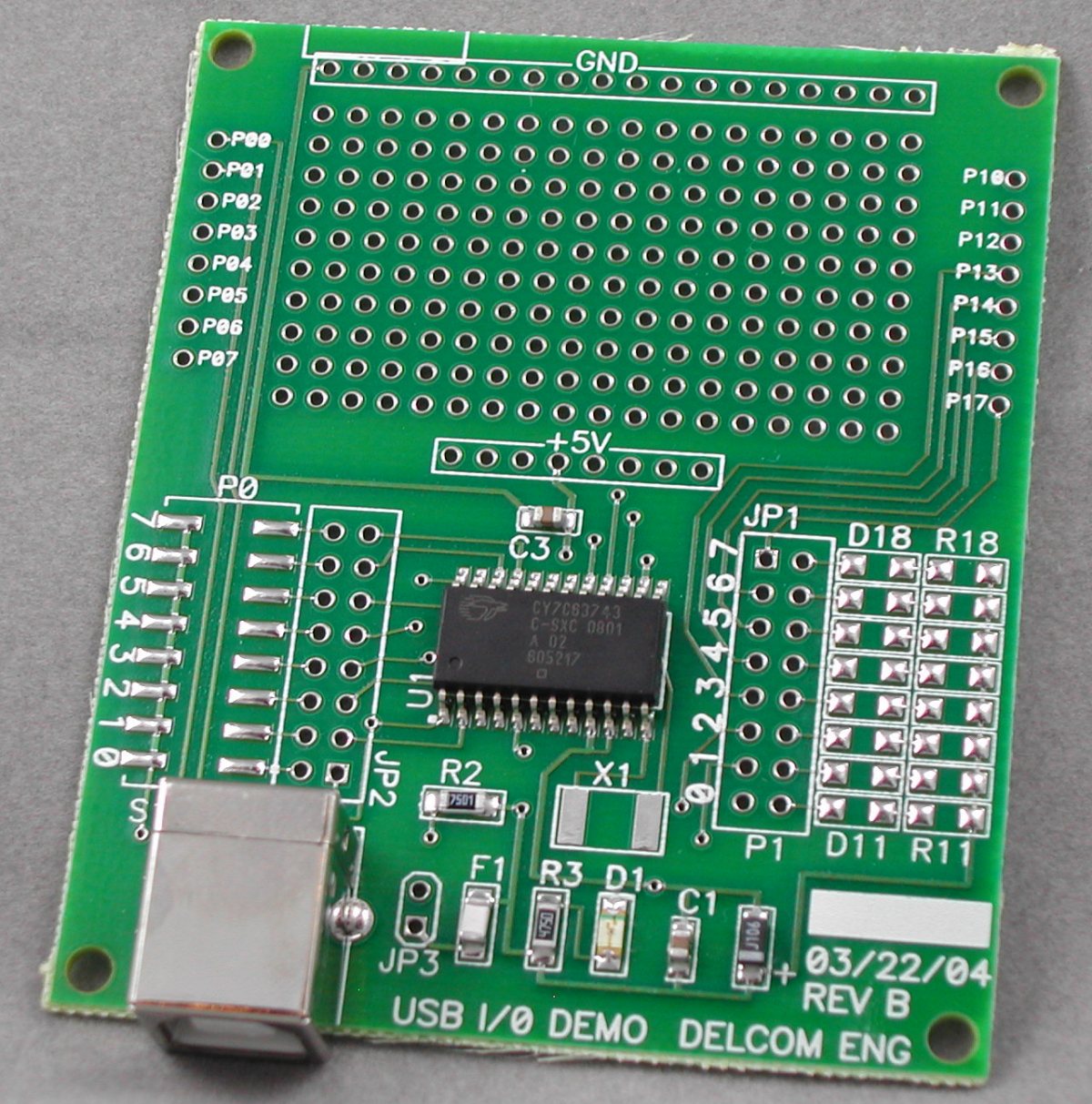

802005 | USB G1 Minimum Demo Brd, Rev C w/Conn | 16 | SOIC24 | InStock | $39.00 |
 |
802200 | USB G1 LS 12 IO CHIP SOIC20 | 12 | SOIC20 | EOL | $8.00 |
|
802270 | USB G1 LS 10 IO CHIP SOIC18 | 10 | SOIC18 | InStock | $8.00 |
 |
802300 | USB G1 LS 12 IO CHIP DIP20 | 12 | DIP20 | EOL | $8.00 |
|
802370 | USB G1 LS 10 IO CHIP DIP18 | 10 | DIP18 | InStock | $8.00 |
 |
802600 | USB G1 LS 16 IO CHIP SOIC24 | 16 | SOIC24 | EOL | $8.00 |
|
802670 | USB G1 LS 16 IO CHIP SOIC24 | 16 | SOIC24 | 2-4 Days | $8.00 |
|
802770 | USB G1 LS 16 IO CHIP DIP24 | 16 | DIP24 | 2-4 Days | $8.00 |
| USB IO Parts & Accessories - Click on part number to order or for more details | ||||||
| Image | PartNumber | Description | Lead Time | Price@1 | ||
|---|---|---|---|---|---|---|
 |
803503 | USB Cable A-Bare Black | InStock | $6.82 | ||
 |
803504 | USB Cable A-Bare White | 4 Days | $6.82 | ||
 |
803506 | USB B RT Connector | InStock | $3.75 | ||
 |

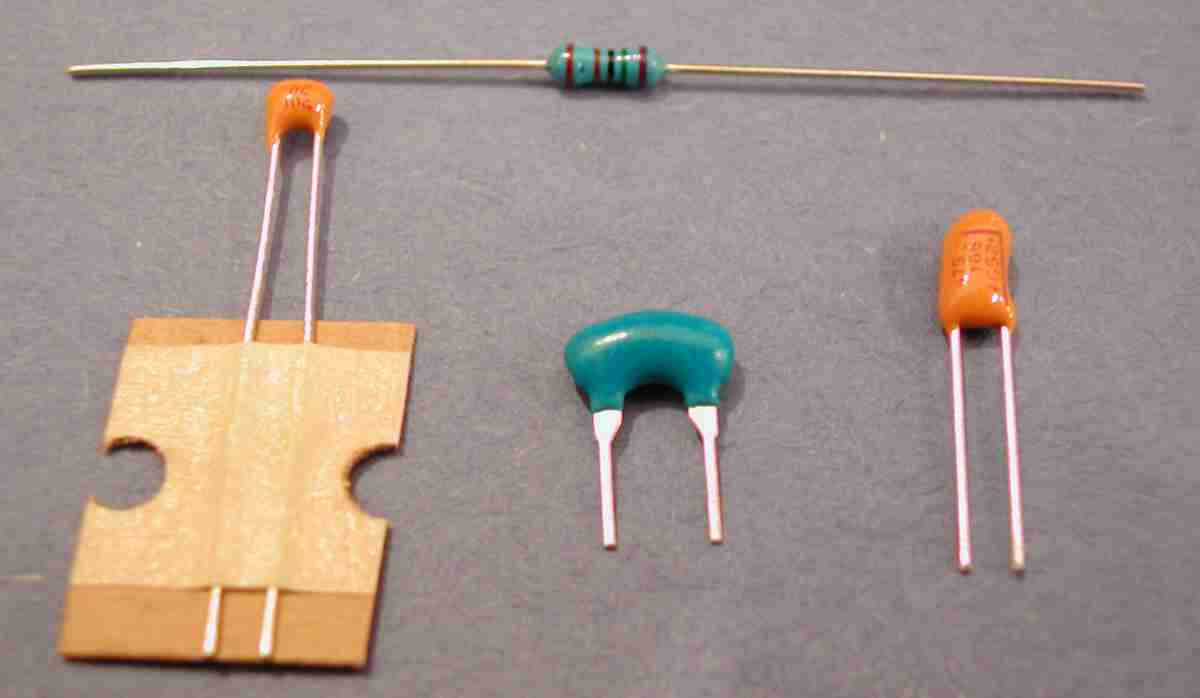

803507 | USB Minimum Parts Kit | InStock | $3.60 | ||
 |

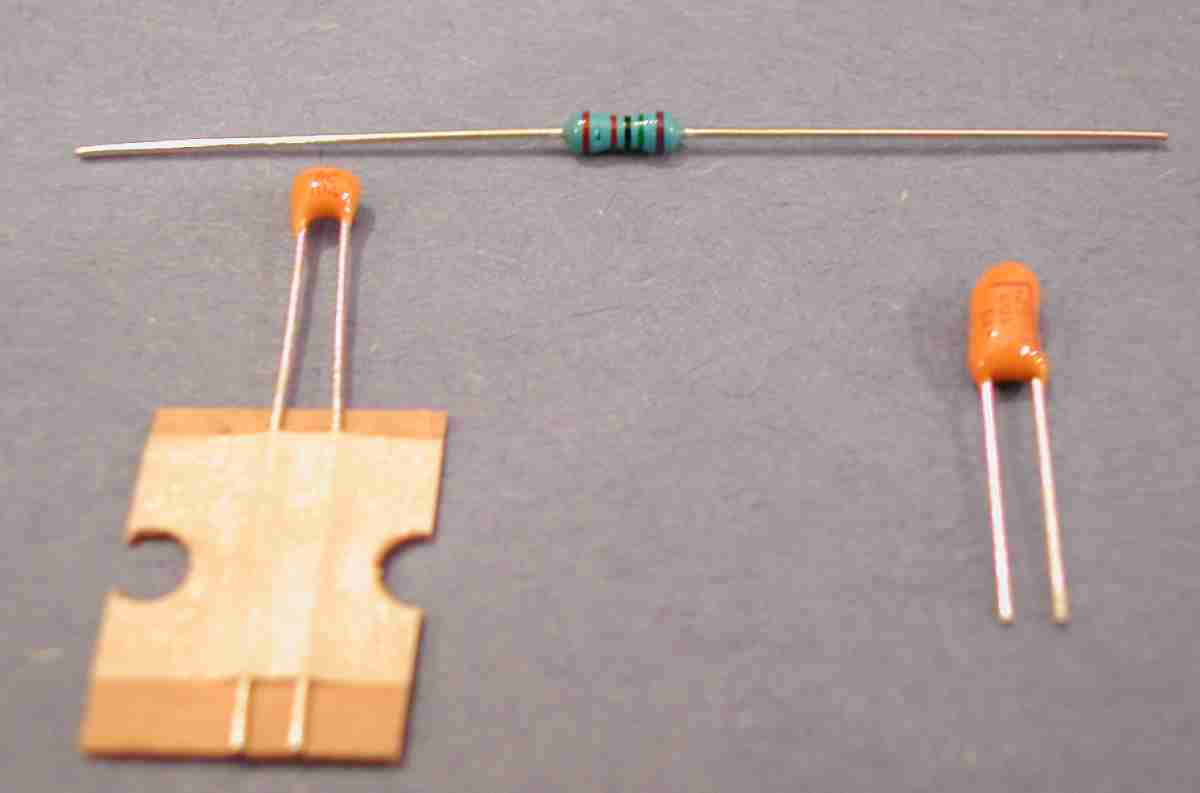

803508 | USB 802x70 & 902x70 Minimum Parts Kit | InStock | $2.60 | ||
 |
803512 | USB 2.0 A-A Ext Cable 15ft | InStock | $8.50 | ||
 |
803514 | USB 2.0 A-B 2M White Cable | InStock | $6.82 | ||
 |
803515 | Blank USB Demo Brd. RevB | EOL | $14.00 | ||
 |

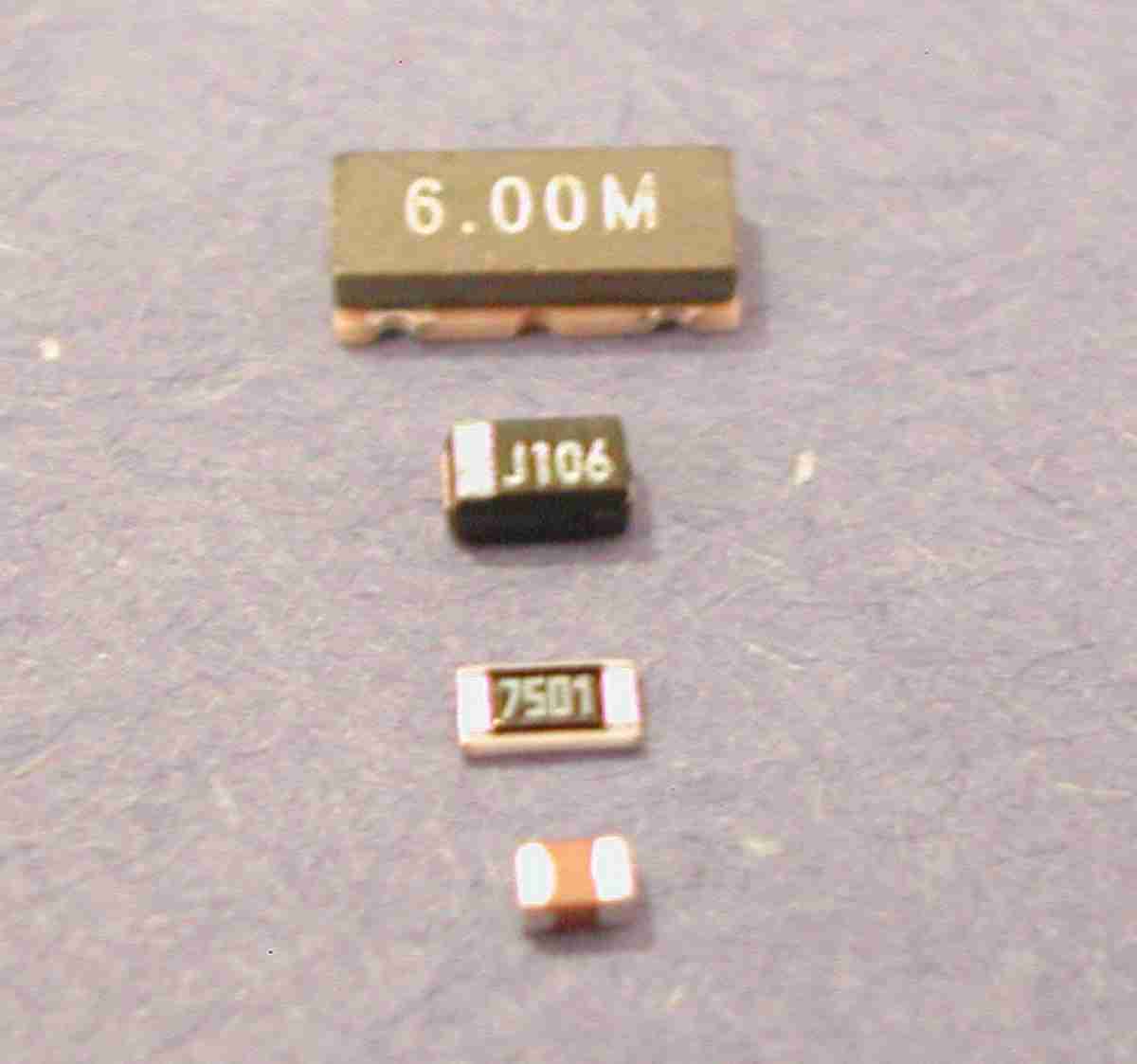

803517 | USB SMT Minimum Parts Kit | InStock | $3.60 | ||
 |

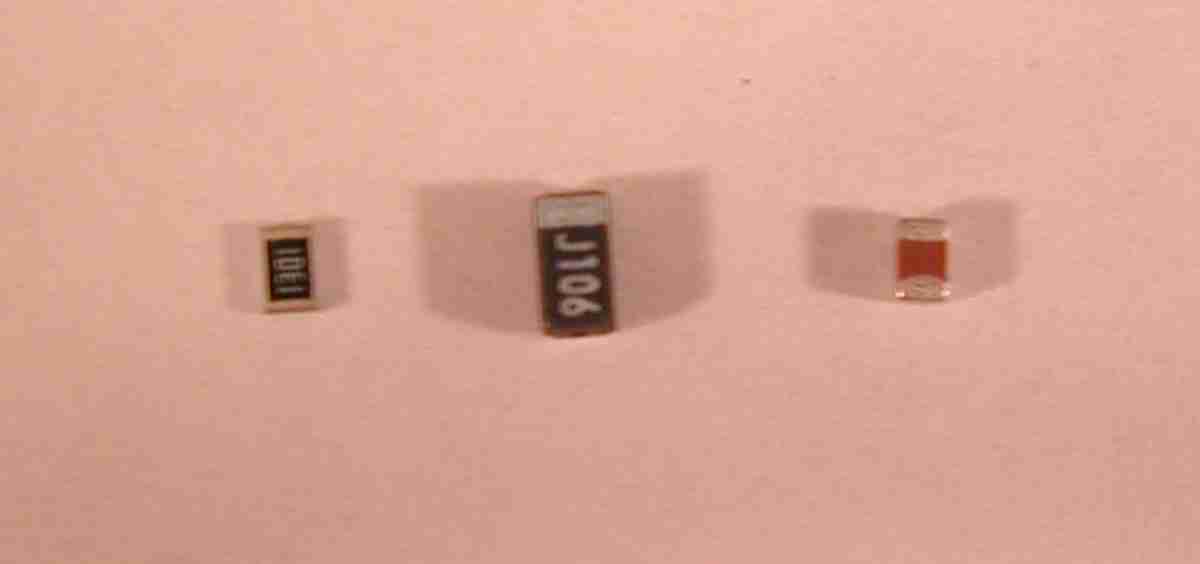

803518 | USB 802x70 & 902x70 SMT Minimum Parts Kit | InStock | $2.60 | ||
| Click on part number to order or for more details | ||||||
