Item#:	803620-5M
Name:	USB HID Foot Key Switch w/5M Cable
Weight:	0.5 lbs
LeadTime:	EOL
Price(USD): ea
Qty 1 - 19	$44.56
Qty 20 - 99	$41.30
Qty 100 - 499	$39.12
Qty 500 - 999	$36.95
Qty 1000+	$34.78

Click on Image for larger view

Description:

NOTE - This product has been DISCONTINUED.
The direct replacement part number is 703600-5M

This device is a USB HID compliant foot switch, which behaves like a key board key.

NOTE - This product has been DISCONTINUED.
The direct replacement part number is 703600-5M

Supports most key codes including modifier key such as ALT, CTRL, SHIFT & GUI.
Uses the OS built in HID drivers. There is no software or driver to load.

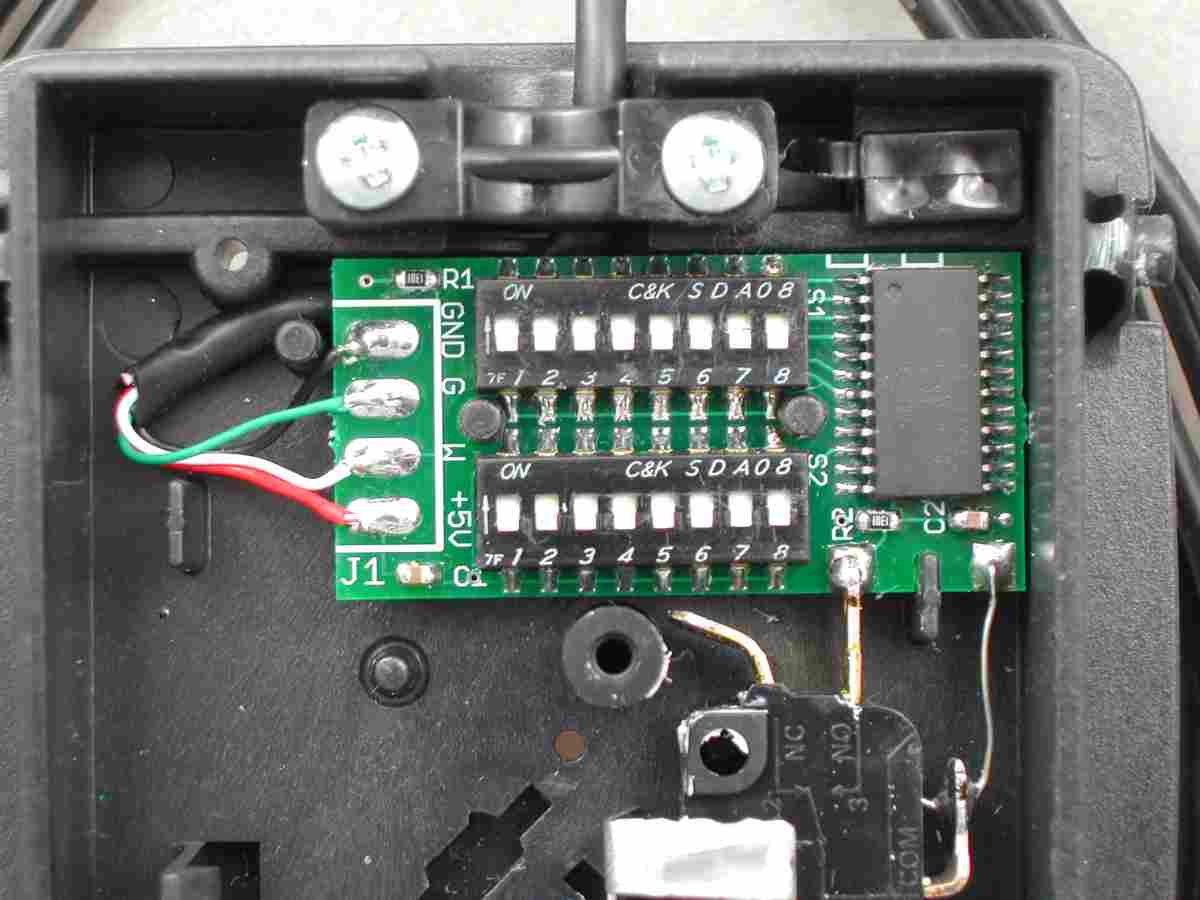

Key code selection is done with 16 internal dip switches(see Picture).
The top 8 dip switches define the key code to be sent.
The bottom 8 dip switches add the modifier keys to the key code.
Dimensions are 3" by 3". Includes 5 Meter USB Cable.
Supports all OS that support USB HID keyboards. Windows, MAC, Linux and others.
Foot Key Manual
Features: Supports all key codes 0-255, with modifier keys (ALT, CTRL, SHIFT & GUI).

Applications: Process Equipment, Automated Processes, Medical Equipment

Note(2) This product is based on a Cypress Microprocessor that has been discontinued. This product is no longer available. See current USB Chip Sets.
