 Products Details
Item#: 802270
Name: USB G1 LS 10 IO CHIP SOIC18
LeadTime: InStock
Price(USD): ea
    Qty 1 - 99$8.28
    Qty 100 - 499$6.21
    Qty 500 - 999$5.69
    Qty 1000+ $5.18
Qty

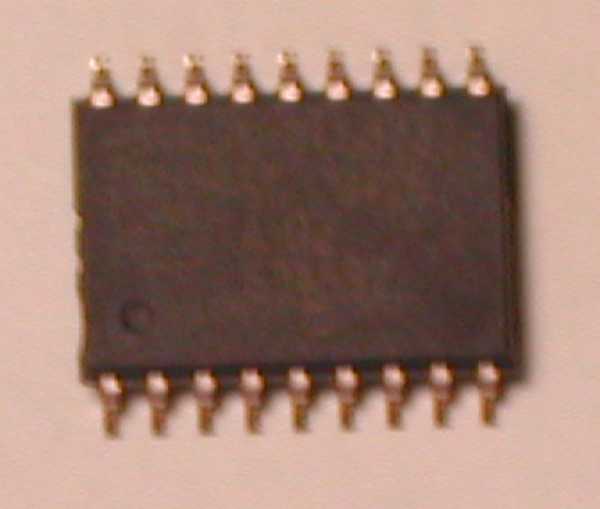

Click on Image for larger view

Description:
Preprogrammed USB G1 Chip 10 Bit IO
Based on the Cypress CY7C637xx USB chips.
Package: 18 Lead SOIC S13 (300-Mil)
16 programmable Input/Output pins.
Minimum external required parts; 1 USB Chip,1 Resistor and 2 Caps.BR> Features; RS232 Serial Port (2400baud only), I2C Port, Event counter, 1 and 8 byte buffered data mode with handshaking, 64 Bit I/O Command, Clock generator with variable duty cycle, Variable current sink control. Self powered from the USB Cable. Up to 450mA available to the user. Unique serial number in each chip.
Generation I products are NOT recommended for new designs.
Supports Windows & Mac OS X.
Add USB to your existing or future products without the hassle of learning USB and driver development.


DATASHEET
CY7C637xx DataSheet Cypress CY7C637xx USB Low Speed Chip. Relates to Delcom 802x70 & 902x70 products.
Programming Manaul USB Programming Manual. Describes the Direct and Registry methods of accessing the Delcom USB driver. Examples in C and VB.
SOIC 24 Package SOIC 24 300 mil Package Diagram
USBIODS G1 Datasheet USBIODS G1 Manual/Datasheet.
