Description:

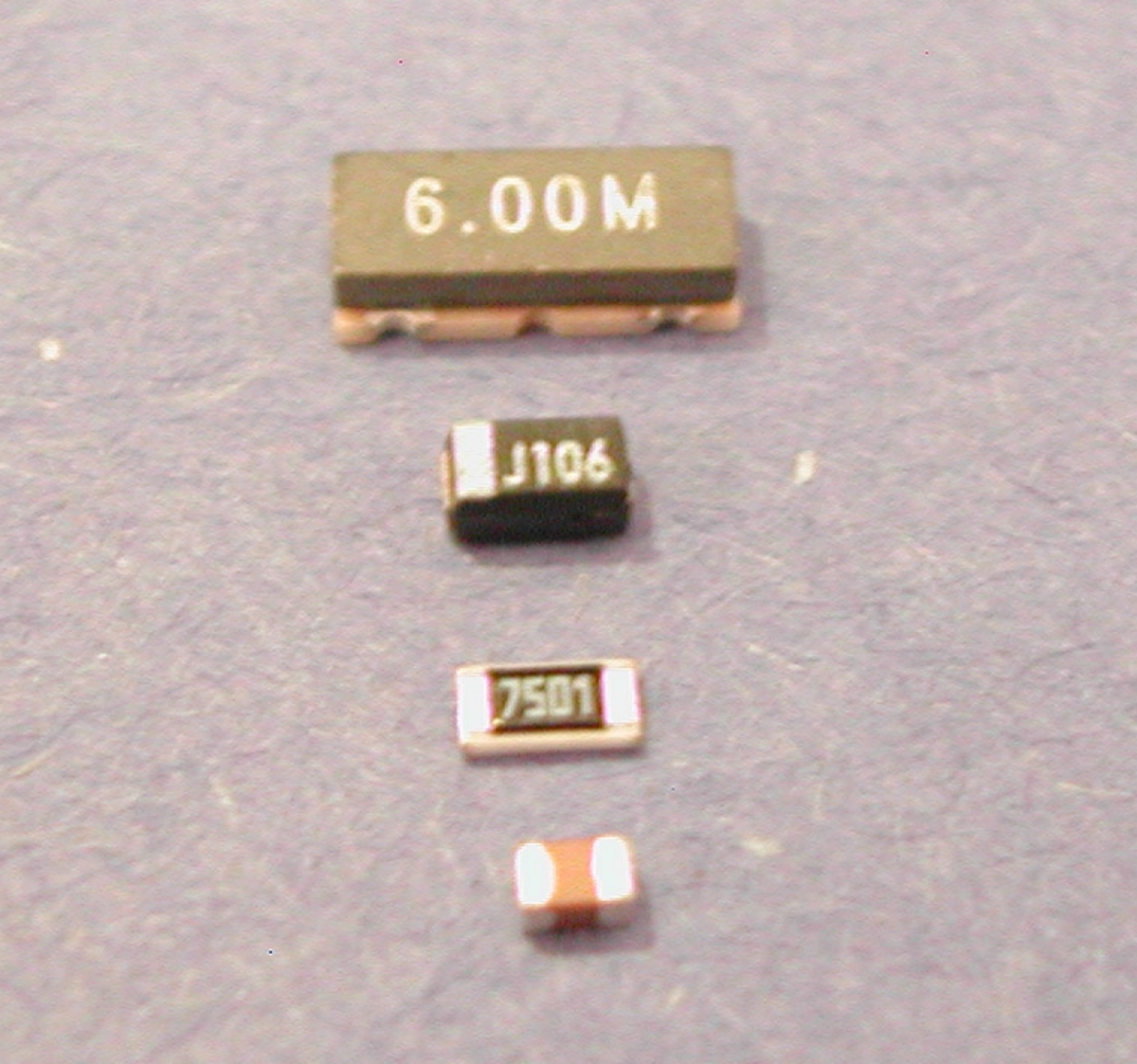

USB Surface Mount Minimum Parts Kit. Minimum required parts for the 802x00 USB IO Chips Includes: 7.5K 1% ResistorSMT-1206, 0.1uf Cap SMT-0805, 4.7uF Tantlum Cap SMR-1206, 6MHz Ceramic Resonator SMT-7.5mm x 3.3mm.

DATASHEET
USB LS Min Parts	USB LS IO Chip Minimum Parts Schematic for PN: 802x00.
RELATED PRODUCTS
802001	USB Low speed IO Chips, Demo Boards, Part Kits and cables.
WEBPAGE
Delcom Distribution CD Disk	Delcom Distribution CD Disk - Contains all the Drivers, Applications, Examples, Documentation and sample code.
