Item#: 802600
Name: USB G1 LS 16 IO CHIP SOIC24
LeadTime:
EOL
Price(USD): ea
    Qty 1 - 99$8.00
    Qty 100 - 499$6.00
    Qty 500 - 999$5.50
    Qty 1000+ $5.00

Click on Image for larger view

Description:

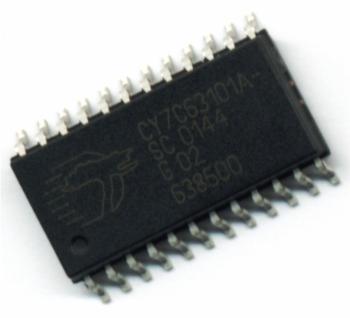

Preprogrammed USB G1 Chip 16 Bit IO
Package: 24 Lead SOIC S13 (300-Mil)
16 programmable Input/Output pins.
Minimum external required parts; 1 USB Chip,1 Resistor, 2 Caps and 1 Crystal.
Features; RS232 Serial Port (2400baud only), I2C Port, Event counter, 1 and 8 byte buffered data mode with handshaking, 64 Bit I/O Command, Clock generator with variable duty cycle, Variable current sink control. Self powered from the USB Cable. Up to 450mA available to the user. Unique serial number in each chip.
Supports Win98, ME, Win2000, XP & Mac OS X.
Add USB to your existing or future products without the hassle of learning USB and driver development.
This chip is not longer available.
Click here for upgrade.
Generation I products are NOT recommended for new designs.
Recomended upgrade chip is the 802670.

Note(2) This product is based on a Cypress Microprocessor that has been discontinued. This product is no longer available. See current USB Chip Sets.
DATASHEET
CYC63000 Datasheet Cypress USB LS CYC63000 Data Sheet. Relates to Delcom 802x00 USB LS IO Chips.
LS Migration Document USB LS IO Chip Migration Document. This document explains the migration path from the 802x00 parts to the new 802x70 parts.
Programming Manaul USB Programming Manual. Describes the Direct and Registry methods of accessing the Delcom USB driver. Examples in C and VB.
SOIC 24 Package SOIC 24 300 mil Package Diagram
USB LS Min Parts USB LS IO Chip Minimum Parts Schematic for PN: 802x00.
USBIODS G1 Datasheet USBIODS G1 Manual/Datasheet.
