Item#: 802370
Name: USB G1 LS 10 IO CHIP DIP18
Price(USD): ea
    Qty 1 - 99$8.28
    Qty 100 - 499$6.21
    Qty 500 - 999$5.69
    Qty 1000+ $5.18

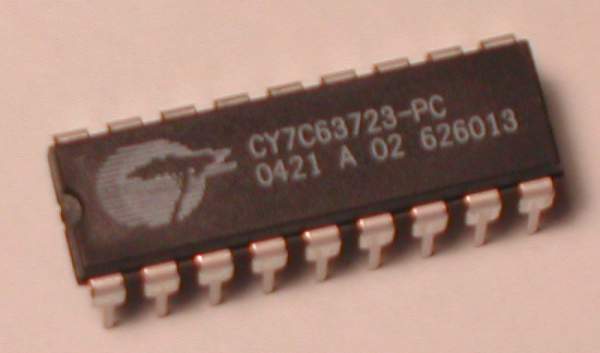

Click on Image for larger view

Preprogrammed USB G1 Chip 10 Bit IO
Based on the Cypress CY7C637xx USB chips.
Package: 18 Lead DIP18(300-Mil)
16 programmable Input/Output pins.
Minimum external required parts; 1 USB Chip,1 Resistor and 2 Caps.
Features; RS232 Serial Port (2400baud only), I2C Port, Event counter, 1 and 8 byte buffered data mode with handshaking, 64 Bit I/O Command, Clock generator with variable duty cycle, Variable current sink control. Self powered from the USB Cable. Up to 450mA available to the user. Unique serial number in each chip.
Generation I products are NOT recommended for new designs.
Supports Win98, ME, Win2000, XP & Mac OS X.
Add USB to your existing or future products without the hassle of learning USB and driver development.

Note(2) This product is based on a Cypress Microprocessor that has been discontinued. This product is no longer available. See current USB Chip Sets.
CY7C637xx DataSheet Cypress CY7C637xx USB Low Speed Chip. Relates to Delcom 802x70 & 902x70 products.
Programming Manaul USB Programming Manual. Describes the Direct and Registry methods of accessing the Delcom USB driver. Examples in C and VB.
SOIC 24 Package SOIC 24 300 mil Package Diagram
USBIODS G1 Datasheet USBIODS G1 Manual/Datasheet.
802000 USB Demo Brd, Rev B$50.72
802001 USB Low speed IO Chips, Demo Boards, Part Kits and cables.
802004 USB Demo Brd, Rev B w/Conn$50.72
802270 USB LS 10 IO CHIP SOIC18$8.28
802670 USB LS 16 IO CHIP SOIC24$8.28
802770 USB LS 16 IO CHIP DIP24$8.28
803504 USB Cable A-Bare White$7.48
803506 USB B RT Connector$4.12

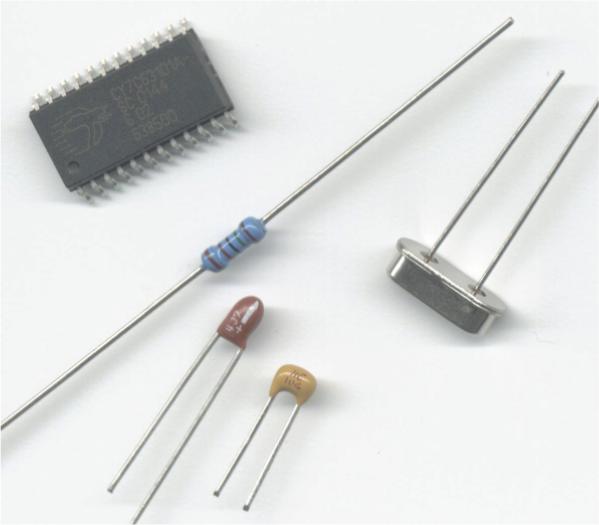

803507 USB Minimum Parts Kit$3.94
803514 USB 2.0 A-B Cable$7.48
803515 Blank USB Demo Brd. RevB$14.00
890501 USB Dos Utility
890502 USB 64 Bit IO
890503 Mac OSX Drivers
890504 I2C Example Code
890505 USB I/O CVI Code
890506 Borland Example
890507 USB IO C/C++ Example
890508 USB IO VB Example
890509 CPP MFC SPI Example
Delcom DLL Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
USB IO VB.NET Example USB IO VB.NET Example MS Visual Basic .NET
Delcom Distribution CD Disk Delcom Distribution CD Disk - Contains all the Drivers, Applications, Examples, Documentation and sample code.
FAQ Frequently Asked Questions.
Tech Info Complete list for all Data Sheets, AppNotes, Software and Example code.
ThirdPartySupport Third Party Support Page. Linux, LabView, Delphi.
