Item#: 908241-F
Name: USB HID Green/Yellow/Red Visual Indicator w/Flanged White Case
Weight: 0.2 lbs
LeadTime: 2-4 Days
Price(USD): ea
    Qty 1 - 19$63.31
    Qty 20 - 49$58.81
    Qty 50 - 99$56.57
    Qty 100 - 499$54.32
    Qty 500 - 999$52.07
    Qty 1000+ $49.83
Qty

Click on Image for larger view
 Description:

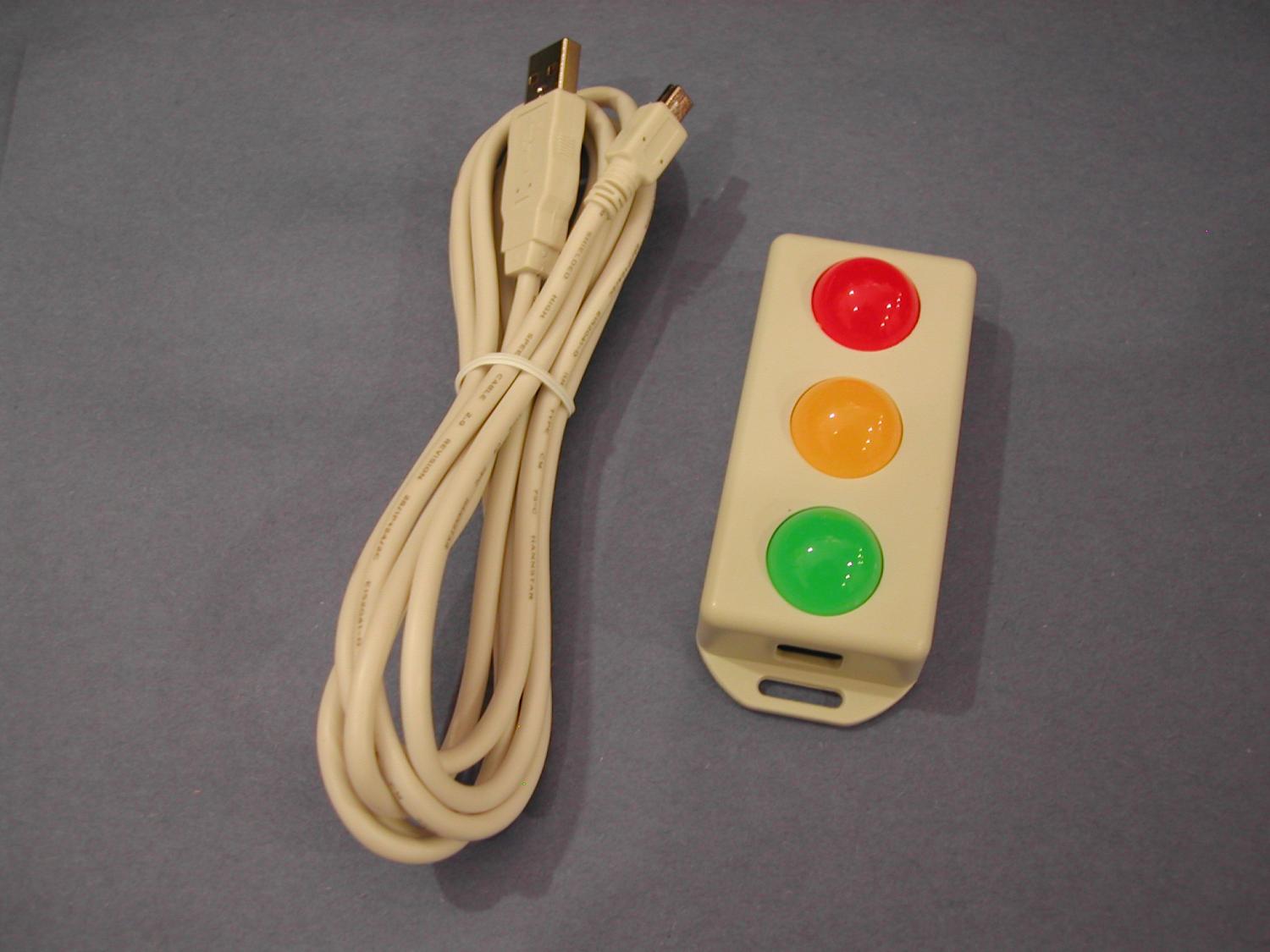

USB HID Green/Yellow/Red Visual Indicator w/Flanged White Case.
The visual signal indicators are powered and controlled via the USB port.
LED color Green. 585nm Wavelength. 150mcd.
LED color Yellow. 565nm Wavelength. 150mcd.
LED color Red. 635nm Wavelength. 150mcd.
Excellent on-off contrast.
Intensity, flash rate and duty cycle are programmable.
Self powered from the USB port.
Dimensions are 3.2" x 1.6" x 1.0"H
Includes 2 Meter White USB Cable.

Applications: Process Equipment, Email Indicator, WebSite Status, Mission Critical Indicators, Assembly Line Status, POS CheckOuts, Queue Controls, Indicator Lamps.

DECLARATION OF CONFORMITY
DATASHEET
USB HID G2 Datasheet USB HID G2 Datasheet. Datasheet for all the Delcom USB HID products.
USB HID G2 Visual Indicator Datasheet. USB HID G2 Visual Indicator Datasheet/manual.
SOFTWARE
Delcom DLL Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
WEBPAGE
900000 Delcom GEN2 USB HID Examples and Documentation
