Description:

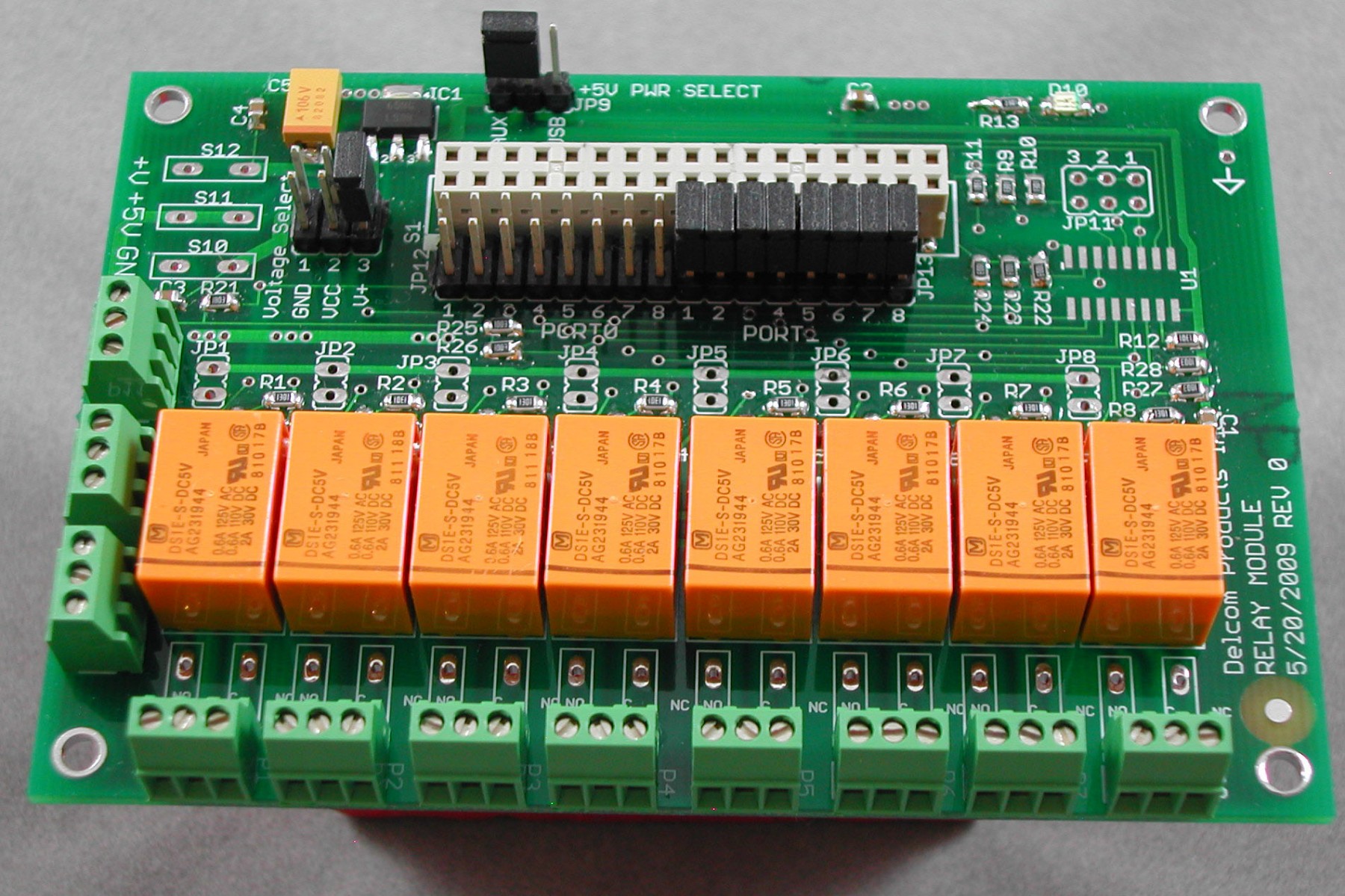

Relay Out 8 Module w/Screw Terminal Connectors
This boards can control 8 relays.
Relays are control from either the P0 or P1 Interface GPIO pins.
Relay Max current: 2A at 30VDC, 0.6A 125VAC, 0.6A at 110VDC.

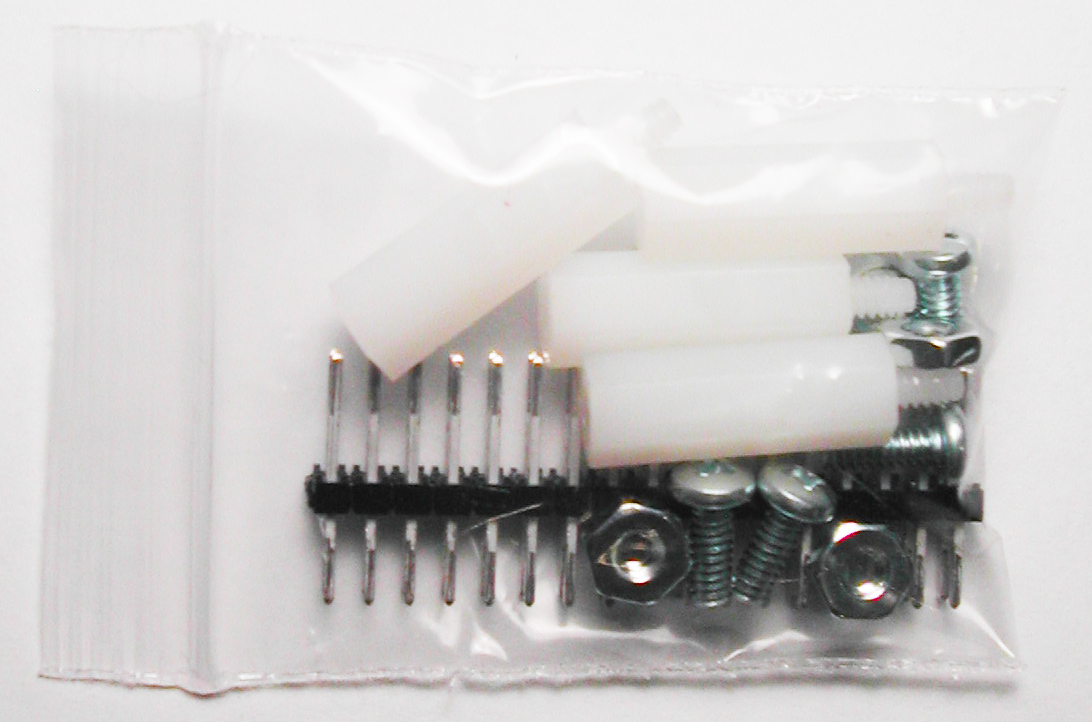

Includes: Mount Hardware
Dimensions: 4"x2.75" (101.6mm x 69.85mm)

Relay Module DataSheet
Relay Module Schematic
Relay Module PCB
