 Products Details
Item#: 900202
Name: USB G2 Dual Relay Module
Weight: 0.1 lbs
LeadTime: 5 Days
Price(USD): ea
    Qty 1 - 19$58.22
    Qty 20 - 99$53.75
    Qty 100 - 499$51.51
    Qty 500 - 999$48.16
    Qty 1000+ $44.79
Qty

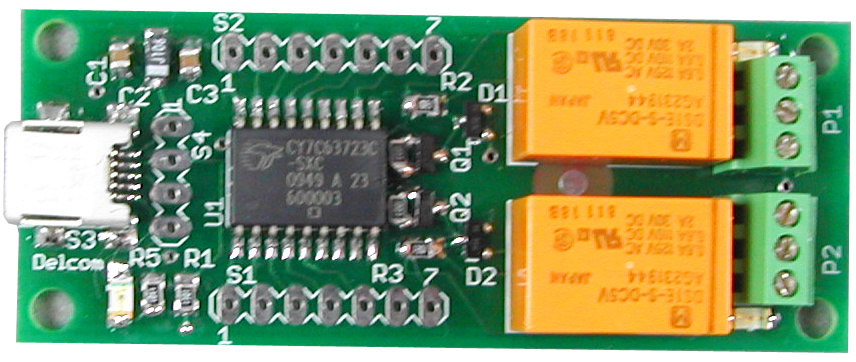

Click on Image for larger view

Description:
USB Dual Relay Module
This boards control 2 relays. Each relay as 3 connections (NO, C, NC).
Each relay can switch 2A at 30VDC and 0.6A at 125VAC.
Relay 1 is controled by P0.0 and Relay 2 is controled by P0.1.
Included USB Controller Chip (partnumber 902670).
Powered and controller via the USB port.
Includes: 2M USB Mini Cable
Dimensions: 1"x2.5"
Schematic
PCB
Simple command line example


DECLARATION OF CONFORMITY
DATASHEET
USB HID G2 Datasheet USB HID G2 Datasheet. Datasheet for all the Delcom USB HID products.
WEBPAGE
900000 Delcom GEN2 USB HID Examples and Documentation
902100 Delcom Modules
