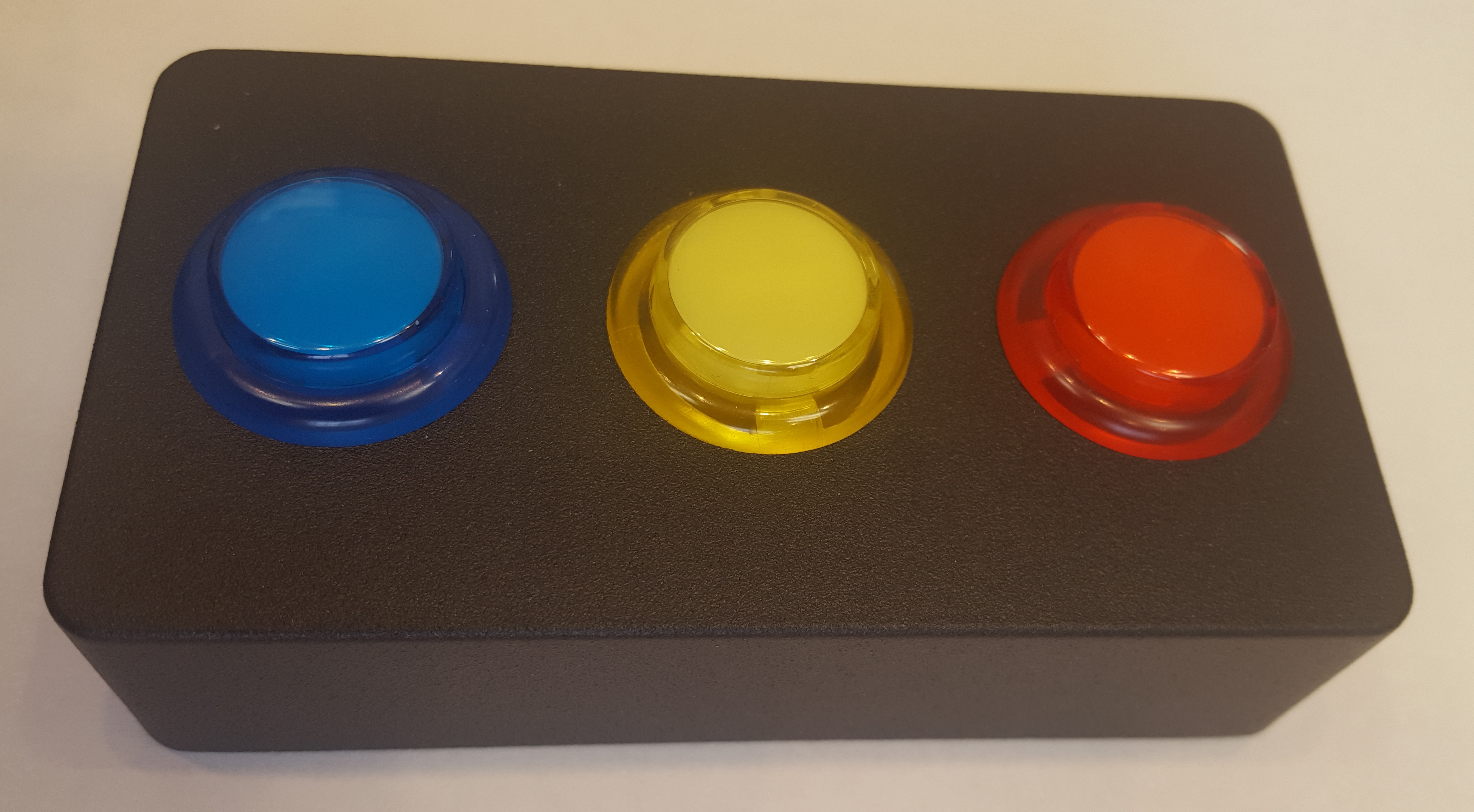

USB HID Programmable Triple Button Arcade Switch with 2M Cable.
This device can be programmed to emulate keycodes, mouse buttons and joystick buttons .
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands(Button connected to pin P0.0 and LED on P1.4).
Supports all Major operating systems (32 and 64 bit).
Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load.
Unique serial number in each device, for use with multiply devices.
Self Powered from the USB port. Die Cast Aluminum Enclosure
Dimensions are 3.7" x 1.6" 1.5"High (94mm x 40.8mm x x 382.mm High).
Includes 2 Meter USB Cable.
Specify button color and location when ordering. Available button colors are
Red, blue, yellow, green* and clear.
For button location, button number one is the button furthest from the usb cable.
Applications: Process Equipment, Automated Processes, Medical Equipment, Gaming, Special needs
DECLARATION OF CONFORMITY
|706601-5M ||USB HID Programable Single Button Switch w/5M Cable||$61.15 |
|706601-B ||USB HID Programmable Single Button Arcade Red Switch w/Buzzer & 2M Cable||$64.76 |
|706601-F ||USB HID Programable Single Button Switch w/2M Cable & Flange Mount||$58.96 |
|706601-F-5M ||USB HID Programable Single Button Switch w/5M Cable & Flange Mount||$62.24 |
|890672 ||Delcom Setup Utility|
|Delcom DLL ||Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
|900000 ||Delcom GEN2 USB HID Examples and Documentation|
