 Products Details
Item#: 706563-F
Name: USB HID Programable Triple Anti-Vandal Switch w/2M Cable and Flange
Weight: 0.4 lbs
LeadTime: 2-4 Days
Price(USD): ea
    Qty 1 - 19$148.91
    Qty 20 - 99$145.45
    Qty 100 - 499$143.15
    Qty 500 - 999$140.84
    Qty 1000+ $138.54
Qty

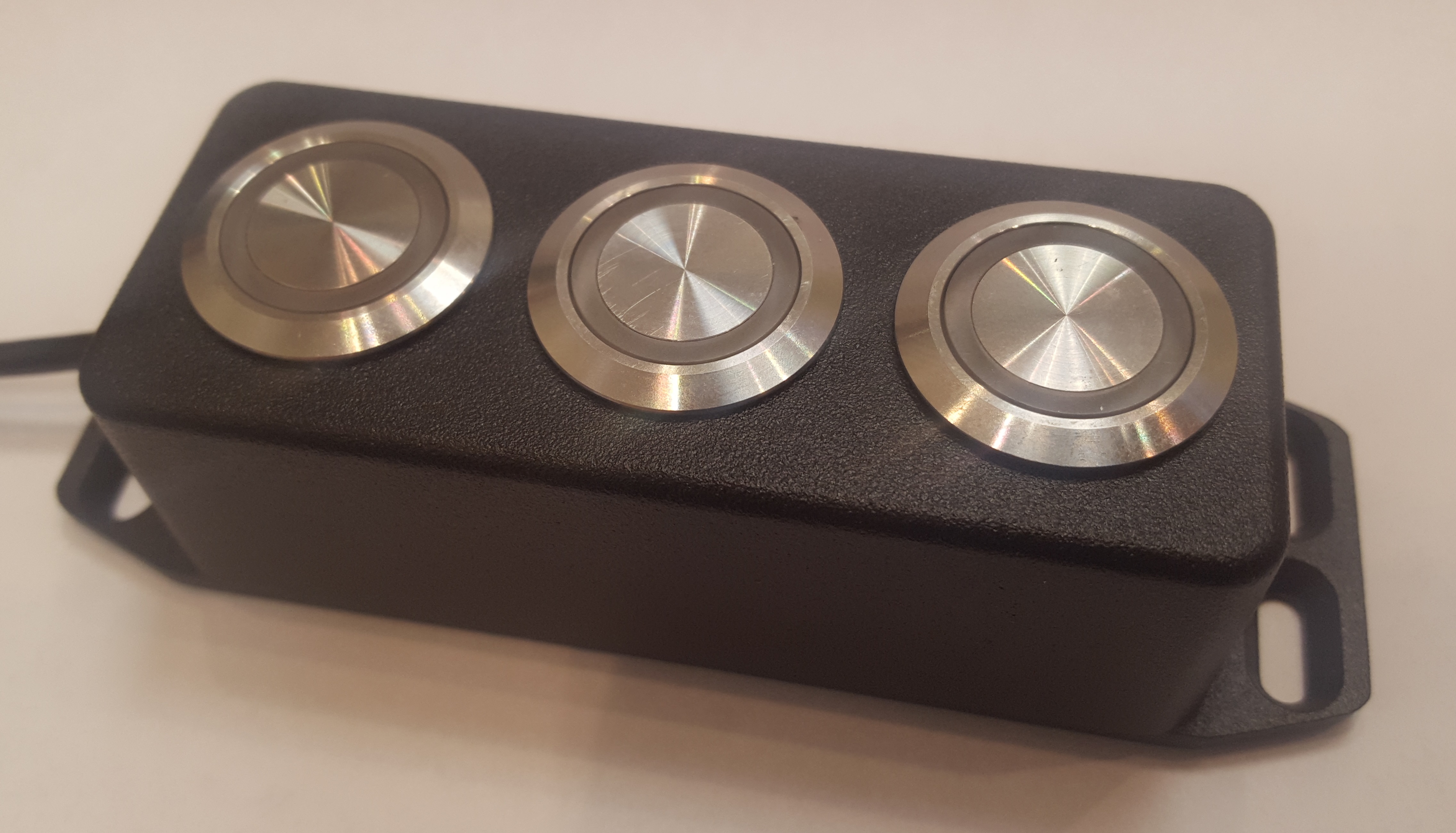

Click on Image for larger view

Description:
USB HID Programmable Triple Anti-Vandal Switch with 2M Cable and Flange.
This device can be programmed to emulate keycodes, mouse buttons and joystick buttons .
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands (Button connected to pin P0.0, P0.1 and LED on P1.4 and P1.5)
Supports all Major operating systems (32 and 64 bit). Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load.
Unique serial number in each device, for use with multiply devices.
Self Powered from the USB port. Die Cast Aluminum Enclosure.
Dimensions are 3.8" x 1.5" 1.2".
Includes 2 Meter USB Cable.

Available with RED, GREEN OR BLUE back lighted button. Default color is RED. For other colors, note the color on check out page 4 in the USER NOTES box.
Applications: Process Equipment, Automated Processes, Medical Equipment, Gaming, Special needs


DECLARATION OF CONFORMITY
SOFTWARE
890672 Delcom Setup Utility
Delcom DLL Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
WEBPAGE
900000 Delcom GEN2 USB HID Examples and Documentation
