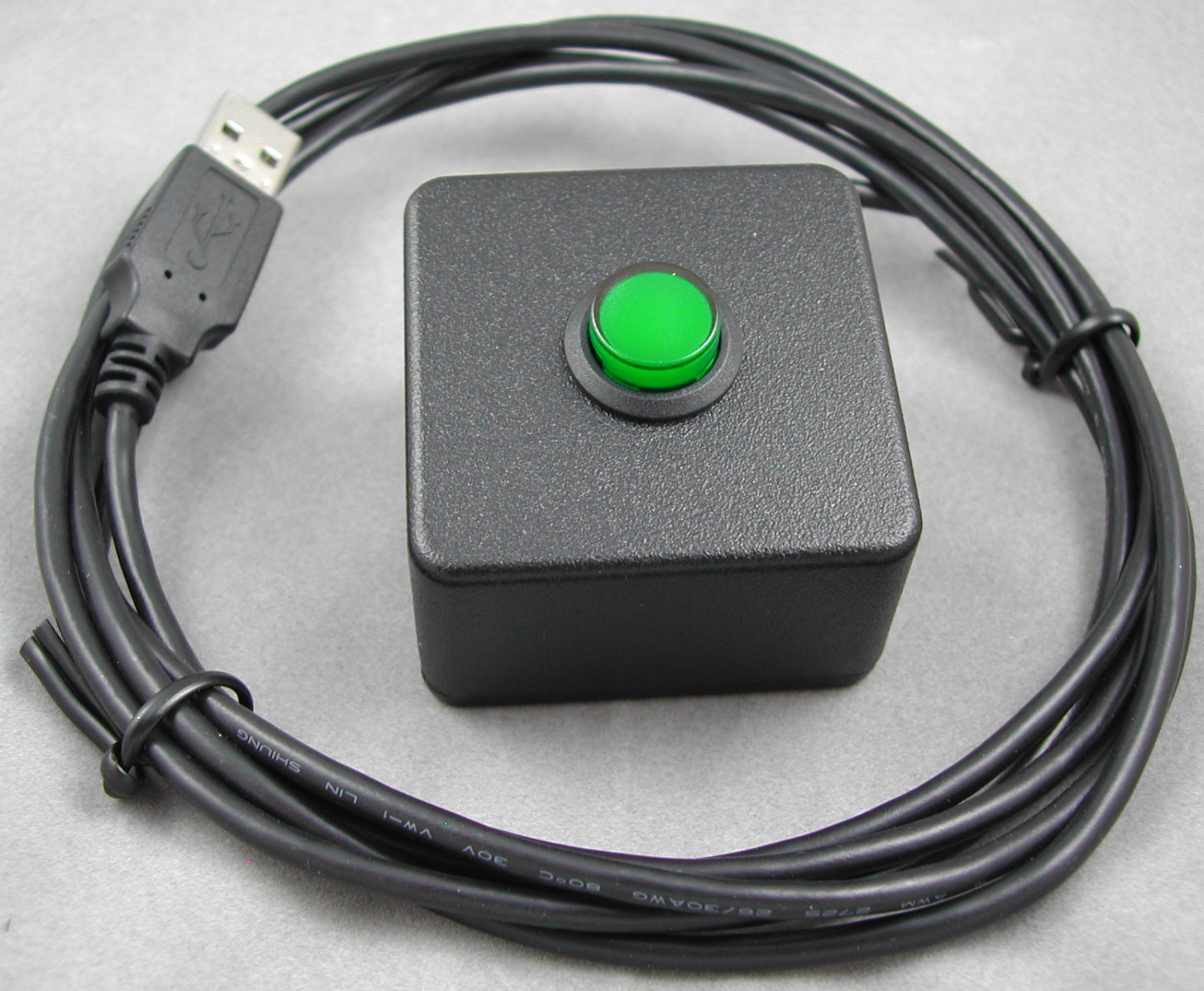

USB HID Programable Single Green Button Switch with 5M Cable.
This device can be programmed to emulate keycodes, mouse buttons and joystick buttons .
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands.
Supports all Windows versions (98+), MAC (10+) and linux operating systems.
Simple plug and play USB compliant device, which uses the standard USB HID driver.
Unique serial number in each device, for use with multiply devices.
Self Powered from the USB port. Die Cast Aluminum Enclosure.
Dimensions are 1.98" x 1.98" 1.235" (50.5mm x 50.5mm x x 31.5mm).
Includes 5 Meter USB Cable.
Momentary push button are illuminated when device is connected to a USB host.
Button 1 is connected to port pin P0.0
This device replaces the following older Delcom devices: 906500, 906520, 906652, 906161.
Applications: Process Equipment, Automated Processes, Medical Equipment, Gaming, Special needs
DECLARATION OF CONFORMITY
|890600 ||FootCtrl Software - Allow delcom products to emulate keyboard keys, mouse buttons or run External applications.|
|890672 ||Delcom Setup Utility|
|Delcom DLL ||Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
|900000 ||Delcom GEN2 USB HID Examples and Documentation|
