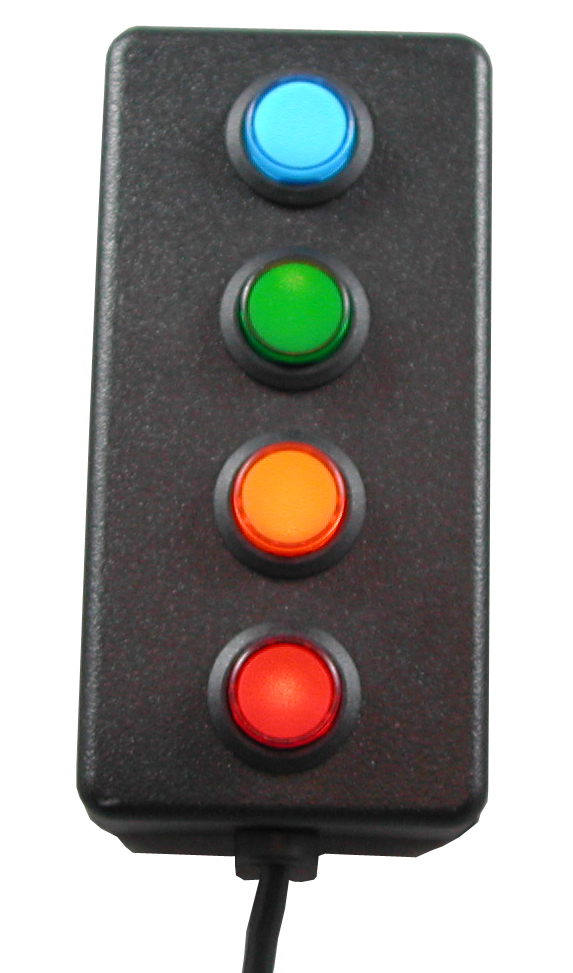

USB HID Programable Quad Button Switch with 2M Cable.
This device can be programmed to emulate keycodes, mouse buttons and joystick buttons .
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands.
Supports all Major operating systems (32 and 64 bit).
Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load.
Unique serial number in each device, for use with multiply devices.
Self Powered from the USB port. Die Cast Aluminum Enclosure.
Dimensions are 3.037" x 1.969" 1.25" (100mm x 50mm x 31.75mm).
Includes 5 Meter USB Cable.
Button 1 (P0.0) is the furthest button from the cable entry.
Available with RED, GREEN, YELLOW or BLUE lighted button. Default color/order is BLUE,GREEN,YELLOW,RED.
For other colors and order, note the color on check out page 4 in the USER NOTES box.
Applications: Process Equipment, Automated Processes, Medical Equipment, Gaming, Special needs
DECLARATION OF CONFORMITY
|890672 ||Delcom Setup Utility|
|Delcom DLL ||Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
|900000 ||Delcom GEN2 USB HID Examples and Documentation|
