 Products Details
Item#: 706502-H
Name: USB HID Programable Dual Button Switch w/2M Cable
Weight: 0.4 lbs
LeadTime: 2-4 Days
Price(USD): ea
    Qty 1 - 19$58.70
    Qty 20 - 99$55.13
    Qty 100 - 499$52.17
    Qty 500 - 999$45.64
    Qty 1000+ $39.11
Qty

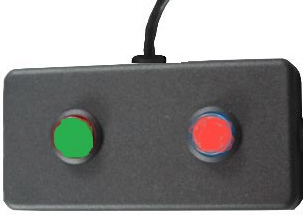

Click on Image for larger view
 Description:
USB HID Programable Dual Button Switch with 2M Cable.
This device can be programmed to emulate keycodes, mouse buttons and joystick buttons .
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands.
Supports all Major operating systems (32 and 64 bit). Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load. Unique serial number in each device, for use with multiply devices.
Self Powered from the USB port. Die Cast Aluminum Enclosure.
Dimensions are 3.037" x 1.969" 1.25" (100mm x 50mm x 31.75mm).
Includes 2 Meter USB Cable.

Button 1 (P0.0) is on the left with cable entry up.
Available with RED, GREEN, YELLOW or BLUE lighted button. Default color/order is GREEN, RED. For other colors and order, note the color on check out page 4 in the USER NOTES box.
Applications: Process Equipment, Automated Processes, Medical Equipment, Gaming, Special needs

DECLARATION OF CONFORMITY
SOFTWARE
890672 Delcom Setup Utility
Delcom DLL Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
WEBPAGE
900000 Delcom GEN2 USB HID Examples and Documentation
