Description:

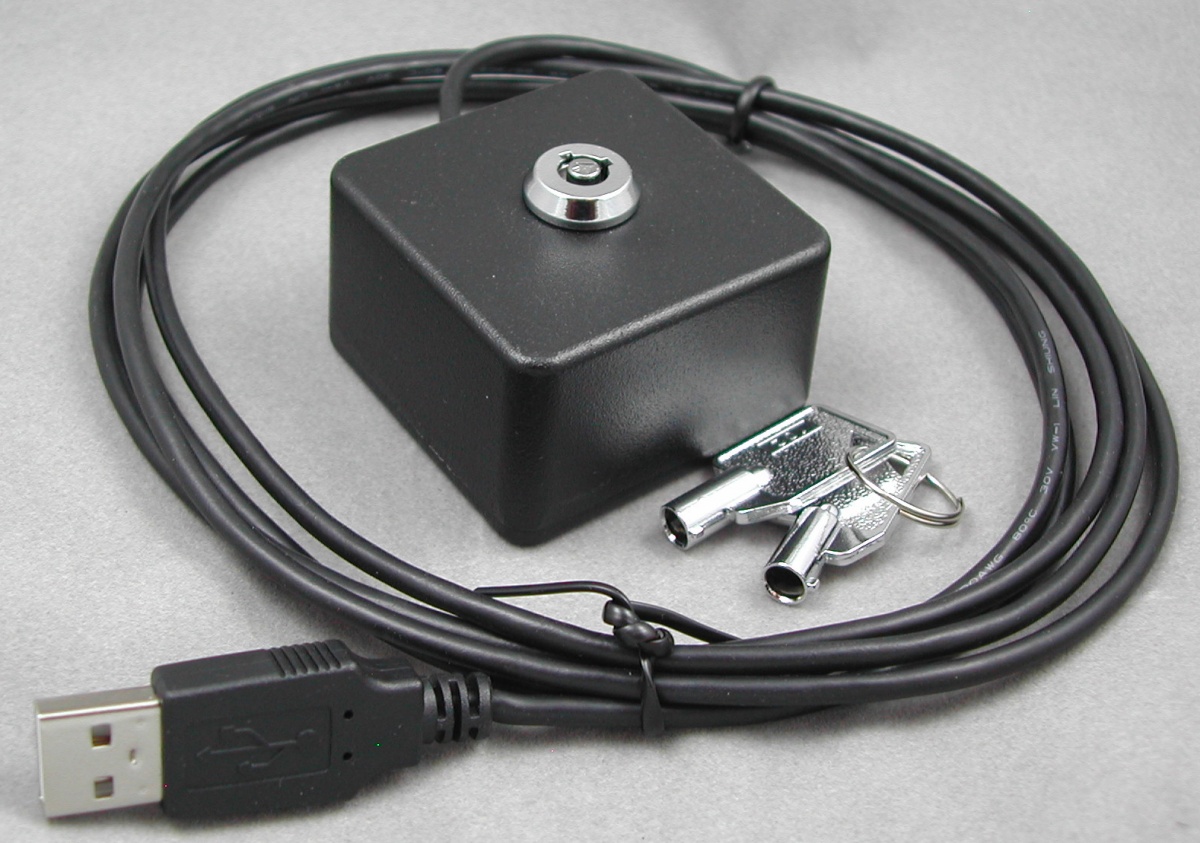

USB HID Low Cost Key Switch Lock with 2 meter USB cable w/Flange Mount.
Two position key switch. Key can be removed in either ON or OFF position.
Simple plug and play technology using the USB HID built in driver.
Device is powered and read via the USB port.
This device can be read directly via software or programmed to emulate keycodes, mouse buttons and joystick buttons .
See the 890672 Delcom Setup Utility below to setup the device.
Supports all Major operating systems (32 and 64 bit).
Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load. Unique serial number in each device, for use with multiply devices.
Self Powered from the USB port. Die Cast Aluminum Enclosure.
Dimensions are 1.98" x 1.98" 1.235" (50.5mm x 50.5mm x x 31.5mm).
Includes 2 Meter USB Cable.
For higher security reads the unique serial number in the device and lock it to your software.
Applications: Process Equipment, Automated Processes, Medical Equipment, Gaming, Special needs
DECLARATION OF CONFORMITY
|
| USB HID G2 Datasheet | USB HID G2 Datasheet. Datasheet for all the Delcom USB HID products. | |
| 890600 | FootCtrl Software - Allow delcom products to emulate keyboard keys, mouse buttons or run External applications. | | Delcom DLL | Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
| |
| 900000 | Delcom GEN2 USB HID Examples and Documentation |
|
