Description:

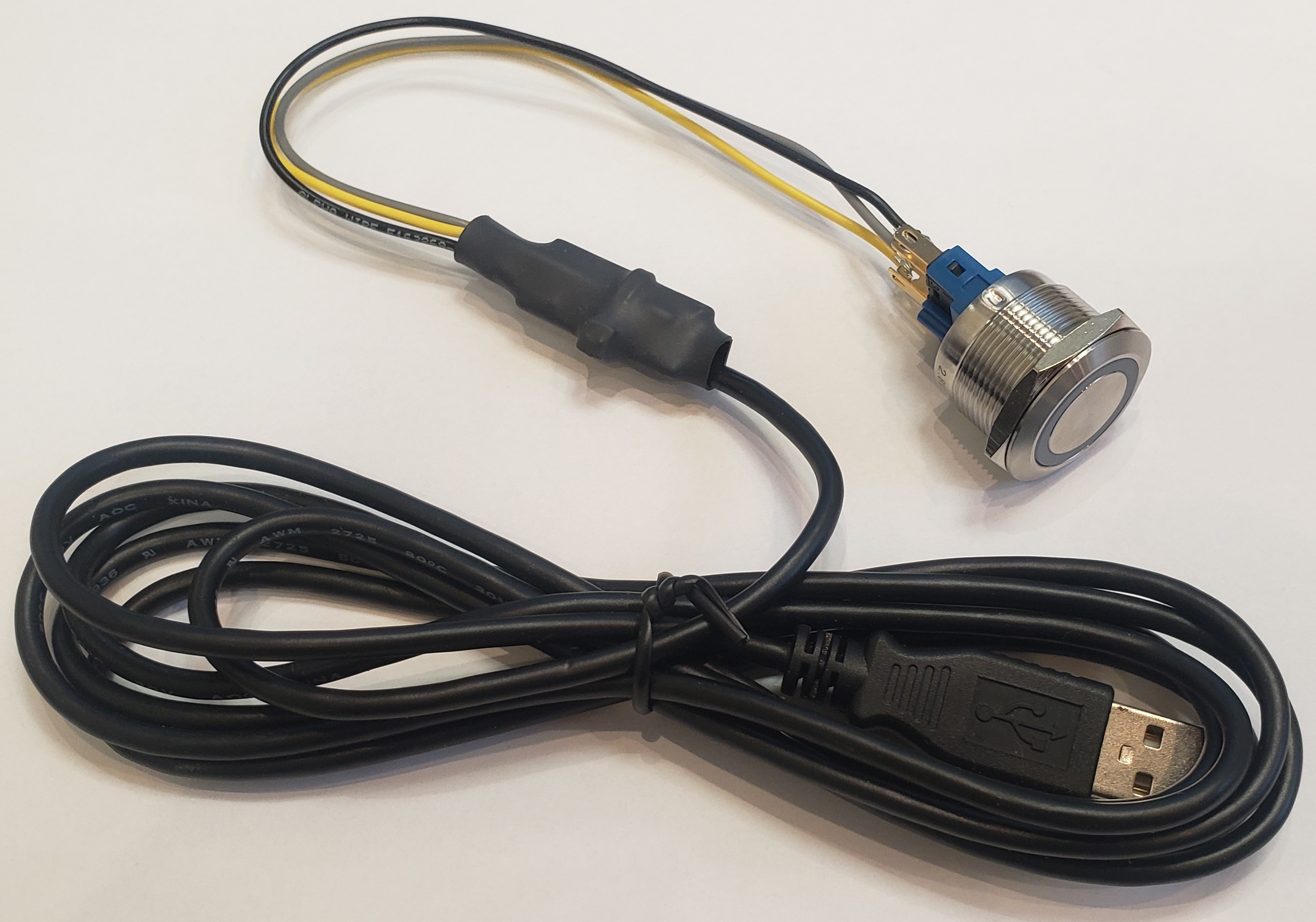

USB HID Anti-Vandal Button Assemble with 5 meter USB cable.
This push button is a rugged, low profile push button designed for public use.
Momentary push button is illuminated red, blue or green when device is connected to a USB host.
Specify LED color when ordering (RED, BLUE, GREEN).
Supports all Major operating systems (32 and 64 bit).
Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load.
Unique serial number in each device.
Self Powered from the USB port.
5M USB Cable included.
Wire Colors: (Wire length 4")
Black - Common (Ground) - Used for both input and output.
Grey - Input 1 (Switch) - Short to Ground to activate.
Yellow - Output 1 (LED) - Goes high (+5VDC*) when active.
DECLARATION OF CONFORMITY
|
