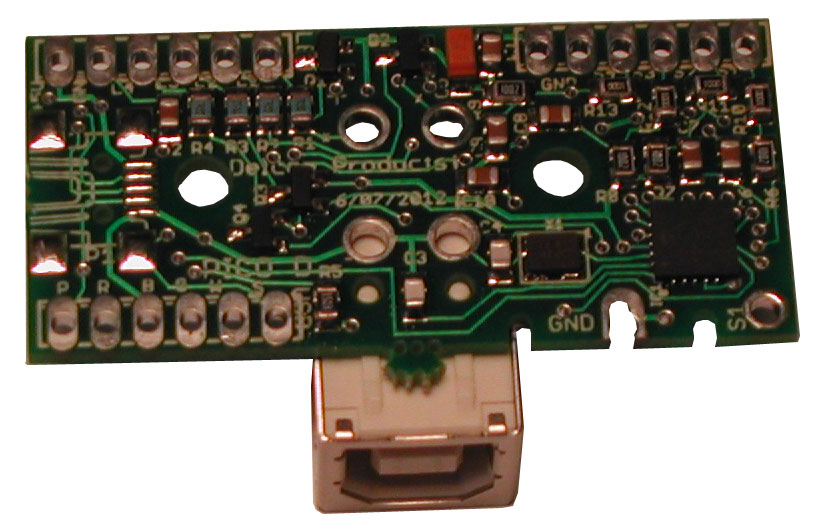

Description: Programable 4 channel PCB board with USB B Connector.
This PCB has 4 inputs and 4 outputs. The 4 inputs can be programmed to emulate keycodes, mouse buttons and joystick buttons or the I/O can be controlled via software.
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands.
Supports all Major operating systems (32 and 64 bit).
Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load.
Unique serial number in each device.
Self Powered from the USB port.
PCB Dimensions: 1.8" by 0.85"
USB Cable not included. Connection Pad Drawing Board Schematic Board Drawing
Applications: Controls, Process Equipment, Automated Processes, Medical Equipment, Gaming, Special Needs
