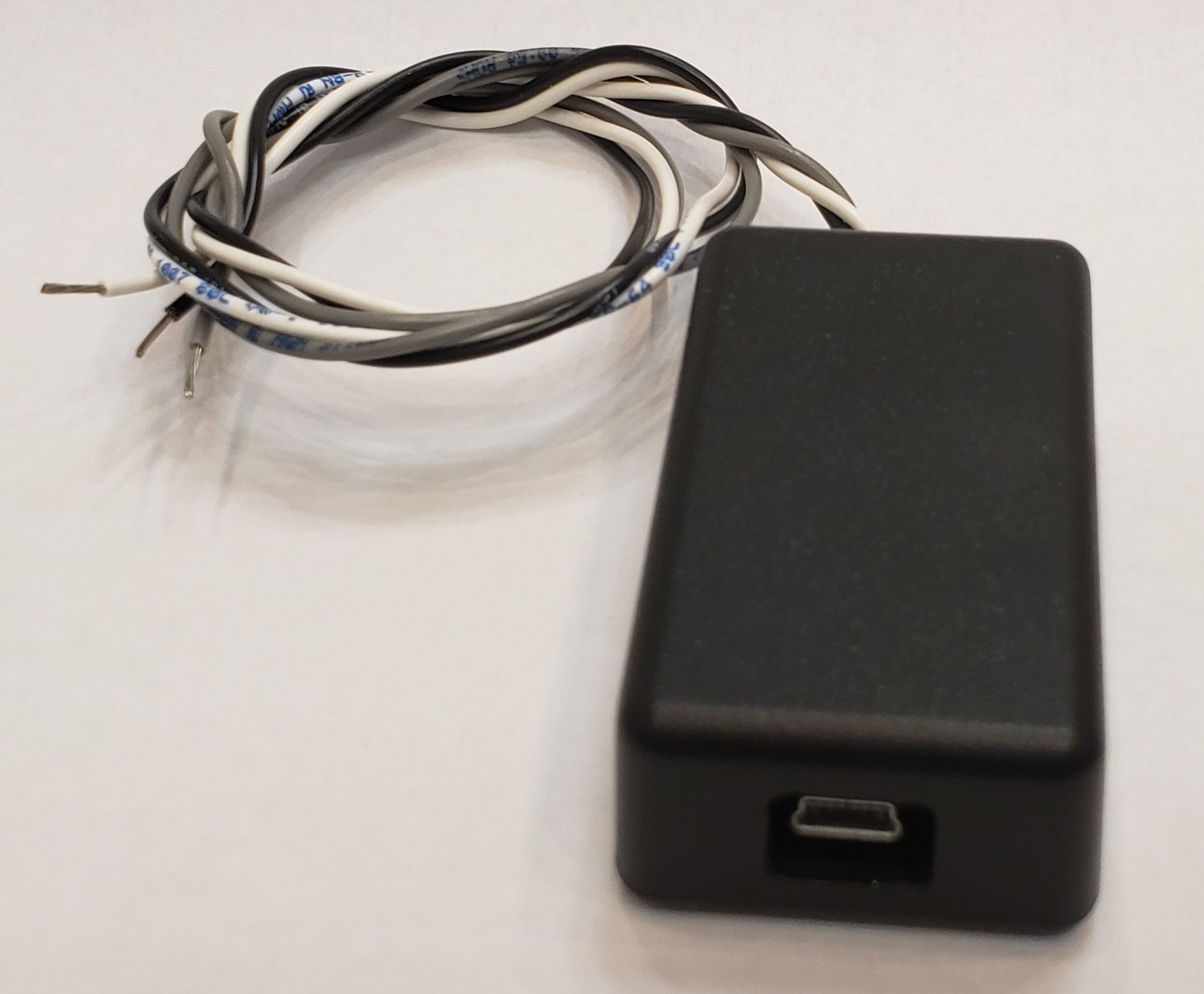

Description: Programable 4 channel PCB board with black enclosure, mini USB Connector and 3 pigtail wires.
This part contains the 705002 PCB and has 4 inputs and 4 outputs. The 4 inputs can be programmed to emulate keycodes, mouse buttons and joystick buttons or the I/O can be controlled via software.
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands.
Supports all Major operating systems (32 and 64 bit).
Simple plug and play USB compliant device. Uses the systems USB HID driver, no drivers to load.
Unique serial number in each device.
Self Powered from the USB port.
Enclosure Dimensions: 2.37"x 1.38"x 0.790" (60mm x 35mm x 20mm).
Requires a USB mini cable(703514-2M). USB Cable not included.
Pigtail wire length 12"
Black wire: Ground
White wire: P0.0 Input
Grey wire: P0.1 Input
Connection Pad Drawing
Board Schematic
Board Drawing
Applications: Controls, Process Equipment, Automated Processes, Medical Equipment, Gaming, Special Needs
DECLARATION OF CONFORMITY
|
705000 | USB HID 4Ch Programable PCB | $30.18 | 705004 | USB HID 4Ch Programable PCB w/B USB Conn | $33.25 | |
890672 | Delcom Setup Utility | Delcom DLL | Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
| |
900000 | Delcom GEN2 USB HID Examples and Documentation |
|
