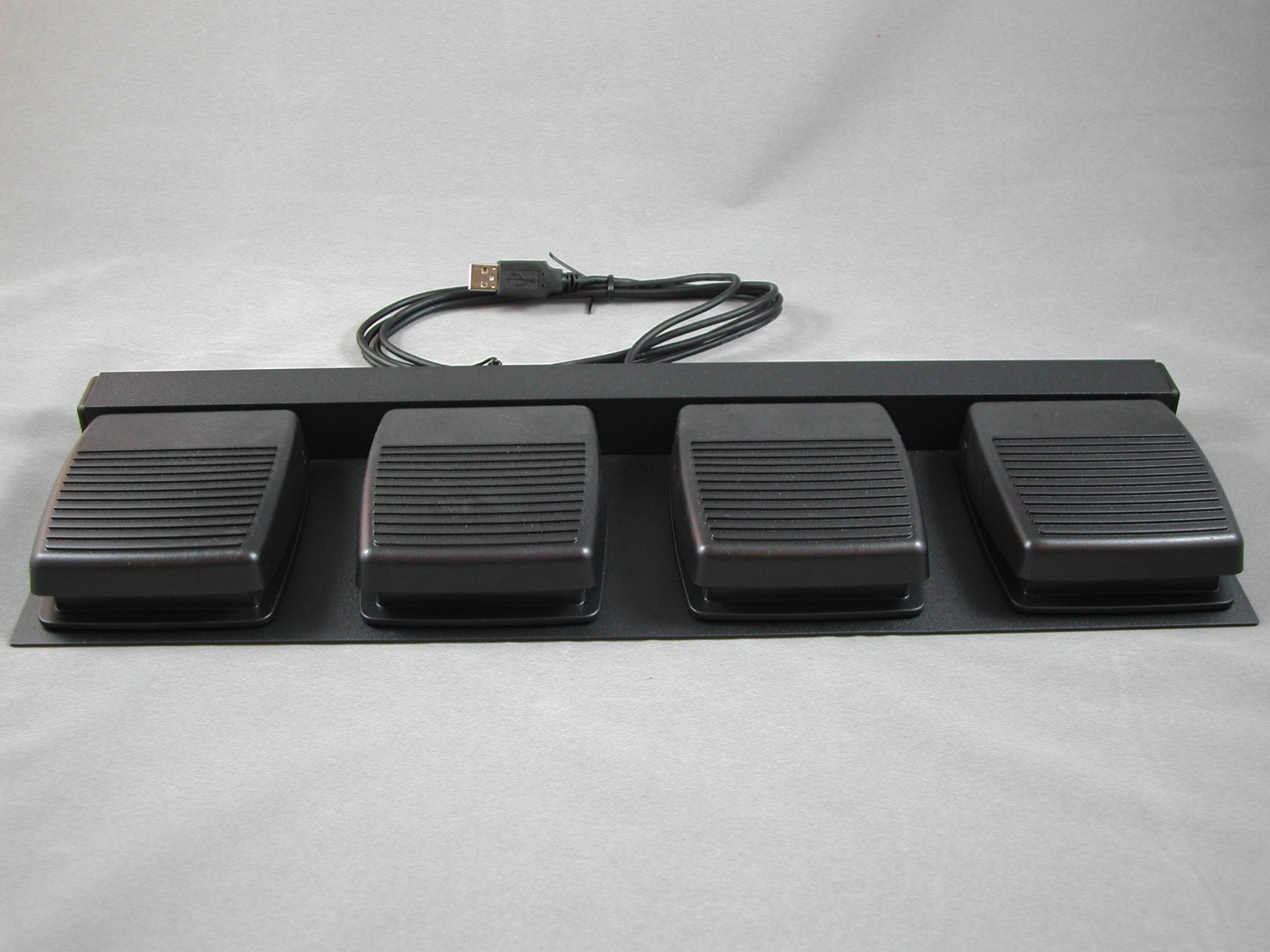

Description: Programmable Quad USB Foot Switch with 5 LED status indicators.
This footswitch can be programmed to emulate keycodes, mouse buttons and joystick buttons .
See the 890672 Delcom Setup Utility below to setup the device.
Device also supports the FootCtrl, DelcomDLL and all generation 2 commands.
Supports all Windows versions (98+), MAC (10+) and linux operating systems.
Simple plug and play USB compliant foot switch, which uses the standard USB HID driver.
Footswitch configuration is side by side. All footswitch can be actuated at the same time.
Unique serial number in each device, for use with multiply footswitches.
Self Powered from the USB port.
Dimensions: 16.628" by 5.25"
Includes 2 Foot USB Cable.
This device replaces the following older Delcom devices:
903604, 803604, 803658, 803704
Applications: Controls, Process Equipment, Automated Processes, Medical Equipment, Gaming, Special Needs
DECLARATION OF CONFORMITY
|
890672 | Delcom Setup Utility | Delcom DLL | Delcom DLL files and manual. The Delcom DLL allows simple integration between the Delcom USB devices and users programs. Works with C/C++, VB, Delphi, Labview, Labwindows and others.
| |
900000 | Delcom GEN2 USB HID Examples and Documentation |
|
